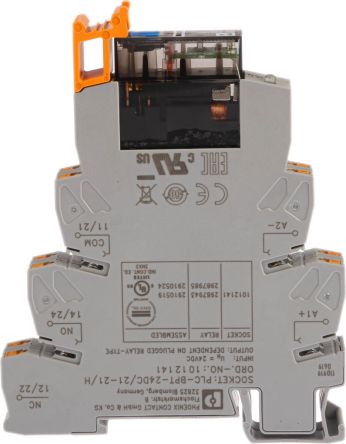

Phoenix Contact PLC-RPT Series 24V dc DIN Rail Interface Relay Module, DPDT, Push In [2910524]; 175-0500
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Contact Configuration | DPDT |
| Switching Current | 1 mA |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac/dc |
| Terminal Type | Push In |
| Length | 14mm |
| Depth | 104mm |
| Series | PLC-RPT- 24DC/21-21AU/MS |
| Height | 80mm |
| Dimensions | 14 x 104 x 80mm |
| Contact Material | Au, Silver Alloy |
| Input Current | 18mA |
| Number of Poles | 2 |
| Standards Met | CUL 508 Recognized, EN 50178, UL 508 Recognized |
| Relay Switching Classification | Interface Relay Module |
| Special Features | Integrated Status LED and Freewheeling Diode, IP20 Relay Base |
| Operating Temperature Range | -20 → +60°C |
| Life | 5 x 10^6 (Mechanical) cycles |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
