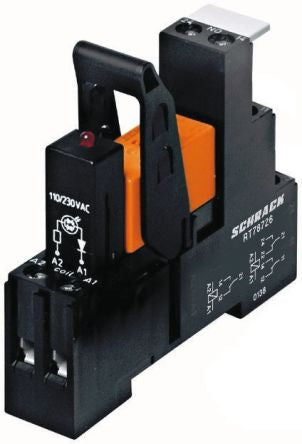

TE Connectivity RT Series 24V ac DIN Rail Interface Relay Module, SPDT, Screw [RT3S4R24 5-1415073-1]; 616-8657
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V ac |
| Switching Current | 16 A |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 77mm |
| Depth | 15.8mm |
| Series | RT |
| Height | 69mm |
| Dimensions | 77 x 15.8 x 69mm |
| Contact Material | Silver Alloy |
| Operating Temperature Range | -20 → +70°C |
| Turn Off Time | 3ms |
| Input Resistance | 350Ω |
| Number of Poles | 1 |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
