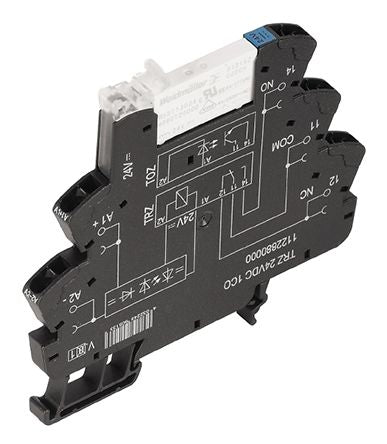

Weidmuller TRZ Series 24V DIN Rail Interface Relay Module, SPDT, Clamp [1122880000]; 892-8846
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V |
| Switching Current | 0.25 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Terminal Type | Spring Clamp |
| Length | 90mm |
| Series | TRZ |
| Depth | 6.4mm |
| Height | 88mm |
| Dimensions | 90 x 6.4 x 88mm |
| Contact Material | Silver Alloy |
| Input Current | 10mA |
| Maximum Operating Temperature | 60°C |
| Turn Off Time | <7ms |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
| Relay Switching Classification | General Purpose Relay |
| Turn On Time | <6ms |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Operating Temperature Range | -40 → +60°C |
