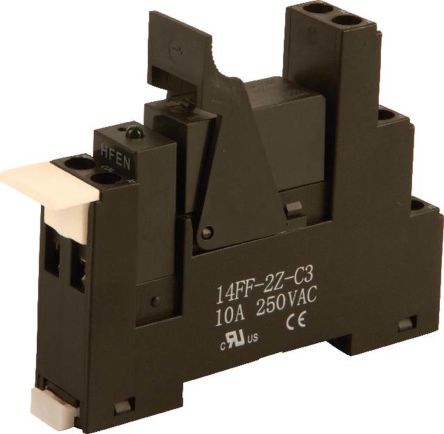

Hongfa Europe GMBH 1RM Series 12V dc DIN Rail Interface Relay Module, SPDT, Screw [1RM-12-16A-3]; 137-2105
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPDT |
| Switching Current | 16 A |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 76mm |
| Series | 1RM |
| Depth | 15.8mm |
| Height | 65mm |
| Dimensions | 76 x 15.8 x 65mm |
| Contact Material | Silver Alloy |
| Input Current | 16A |
| Life | Electrical), Mechanical), 50000 (AC, 100000 (AC, 100000 (DC, 10000000 (DC |
| Turn Off Time | 8ms |
| Operating Temperature Range | -40 → +85°C |
| Control Resistance | 100mΩ |
| Turn On Time | 15ms |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, CURus |
| Special Features | Change Over Contacts, Ejector Clip and Identification Label, LED, Relay, Socket, Supplied Complete, Supply Status LED as Standard 35mm Din Rail Mounting, 1Part Number for Simple Ordering AC & DC Coils, 2 Socket Types For Ease of Installation, 12A and 16A Versions |
| Maximum Operating Temperature | +85°C |
| Relay Switching Classification | Interface Relay Module |
| Number of Poles | 1 |
