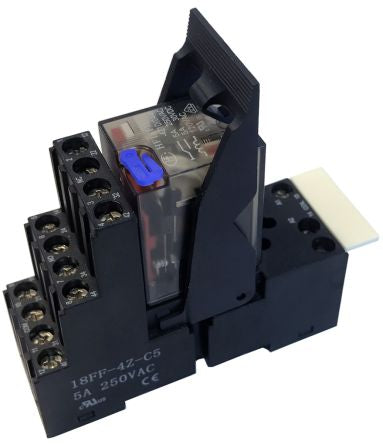

Hongfa Europe GMBH 4RM Series 12V dc DIN Rail Interface Relay Module, 4PDT, Screw [4RM-12-5]; 137-2125
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | 4PDT |
| Switching Current | 0.208333333333333 |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 75mm |
| Depth | 27.2mm |
| Series | 4RM |
| Height | 82mm |
| Dimensions | 75 x 27.2 x 82mm |
| Contact Material | Silver Alloy |
| Input Current | 5A |
| Life | 100000 (Mechanical), 20000000 (Electrical) |
| Turn Off Time | 25ms |
| Operating Temperature Range | -40 → +70°C |
| Maximum Operating Temperature | +70°C |
| Turn On Time | 25ms |
| Control Resistance | 100mΩ |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, CURus, DVE |
| Special Features | AC & DC Coils, Built in Supply Status LED, Built in Test Button & Flag Indicator, Change Over Contacts, Clip and Identification Label, Fjector, Relay, Socket, Supplied Completed, 1 Part Number for Simple Ordering, 35mm DIN Rail Mounting |
| Number of Poles | 4 |
| Relay Switching Classification | Interface Relay Module |
