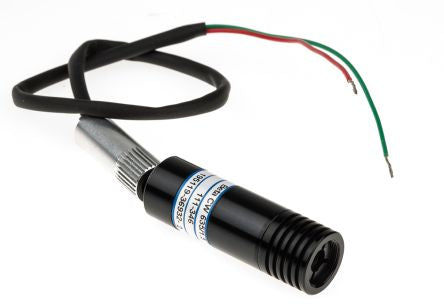

1068-40-000 Laser Module, 633Nm 1.5mW, Continuous Wave, TTL control Ellipse pattern +4.5 → +5.5 V [1068-40-000]; 111-346
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Laser Type | Continuous Wave |
| Laser Colour | Red |
| Emission Pattern | Ellipse |
| Laser Wavelength | 633nm |
| Optical Output Power | 1.5mW |
| Control Type | TTL |
| Laser Class | 3R |
| Parallel Beam Divergence FWHM | 0.5mrad |
| Perpendicular Beam Divergence FWHM | 0.5mrad |
| Dimensions | 15.25 (Dia.) x 46mm |
| Diameter | 15.25mm |
| Length | 46mm |
| Maximum Supply Voltage | +5.5V |
| Minimum Supply Voltage | +4.5V |
| Series | Beta CW |
| Supply Voltage Range | +4.5 → +5.5 V |
