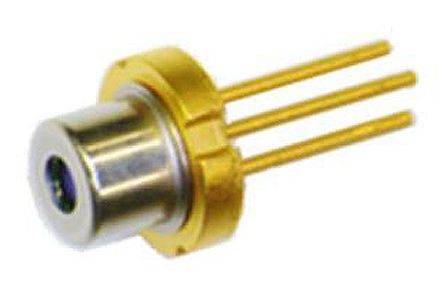

Panasonic LNC728MS01WW IR Laser Diode 783Nm 200mW, 3-Pin TO-56 package [LNC728MS01WW]; 179-6995
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Wavelength | 783nm |
| Optical Output Power | 200mW |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Laser Colour | Infrared |
| Perpendicular Beam Divergence FWHM | 19° |
| Parallel Beam Divergence FWHM | 11.5° |
| Maximum Operating Current | 265mA |
| Dimensions | 5.6 Dia. x 3.95mm |
| Width | 5.6 Dia.mm |
| Height | 3.95mm |
| Diameter | 5.6mm |
| Series | LNC |
| Reverse Voltage | 5V |
| Package Type | TO-56 |
| Supply Voltage Range | 2 → 3 V |
| Maximum Supply Voltage | 3V |
| Minimum Supply Voltage | 2V |
