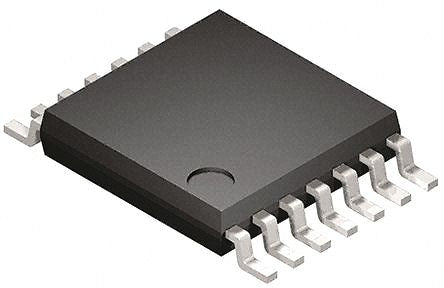

74LV08PW,112 Logic Gate [74LV08PW,112]; 146-0423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 14 |
| Logic Family | LV |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -12mA |
| Maximum Propagation Delay Time @ Maximum CL | 33 ns @ 15 pF |
| Minimum Operating Supply Voltage | 1 V |
| Maximum Low Level Output Current | 12mA |
| Propagation Delay Test Condition | 15pF |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Height | 0.95mm |
| Length | 5.1mm |
| Maximum Operating Temperature | +125 °C |
| Width | 4.5mm |
| Output Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
