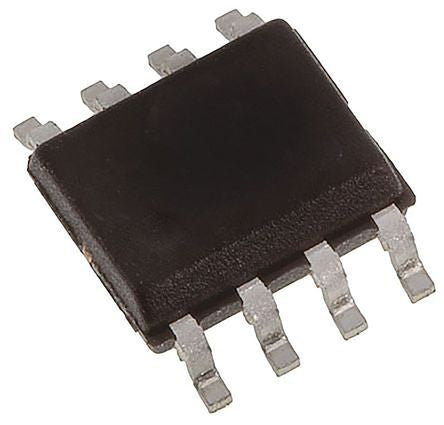

ON Semiconductor MC10EL04DG, 2-Input AND/NAND Logic Gate, 8-Pin SOIC [MC10EL04DG]; 163-0500
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND/NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOIC |
| Pin Count | 8 |
| Logic Family | ECL |
| Input Type | ECL |
| Maximum Operating Supply Voltage | 5.7 V |
| Maximum Propagation Delay Time @ Maximum CL | 395ps |
| Minimum Operating Supply Voltage | -4.2 V |
| Maximum Low Level Output Current | 0.3µA |
| Length | 5mm |
| Width | 4mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 5 x 4 x 1.5mm |
| Height | 1.5mm |
| Output Type | ECL |
