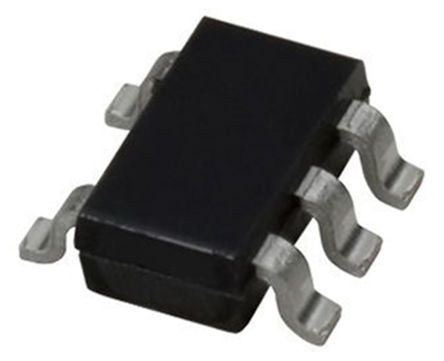

ON Semiconductor Logic Gate [NC7ST32P5X]; 146-2138
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | OR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SC-70 |
| Pin Count | 5 |
| Logic Family | TinyLogic HST |
| Input Type | TTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -2mA |
| Maximum Propagation Delay Time @ Maximum CL | 31 ns @ 50 pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 2mA |
| Width | 1.25mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2 x 1.25 x 0.9mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.9mm |
| Propagation Delay Test Condition | 50pF |
| Length | 2mm |
| Output Type | CMOS, NMOS |
