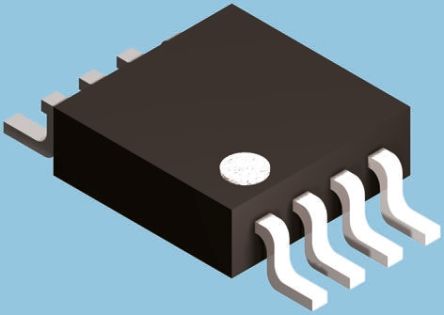

ON Semiconductor NC7WP08K8X, Dual 2-Input AND Logic Gate, 8-Pin US [NC7WP08K8X]; 166-2802
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | US |
| Pin Count | 8 |
| Logic Family | TinyLogic ULP |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum High Level Output Current | -2.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 46.3ns |
| Minimum Operating Supply Voltage | 0.9 V |
| Maximum Low Level Output Current | 2.6mA |
| Length | 2.3mm |
| Propagation Delay Test Condition | 30pF |
| Output Type | CMOS |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 2.3 x 2 x 0.7mm |
| Minimum Operating Temperature | -40 °C |
| Width | 2mm |
| Height | 0.7mm |
