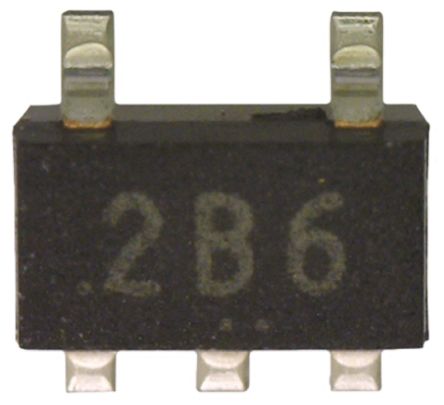

Toshiba TC7S08F(F), 2-Input AND Logic Gate, 2 → 6 V, 5-Pin SSOP [TC7S08F(F)]; 540-0499
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SSOP |
| Pin Count | 5 |
| Logic Family | HC |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -2.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 17 ns @ 6 V, 20 ns @ 4.5 V, 100 ns @ 2 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 2.6mA |
| Maximum Operating Temperature | +85 °C |
| Length | 2.9mm |
| Width | 1.6mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.9 x 1.6 x 1.1mm |
| Height | 1.1mm |
