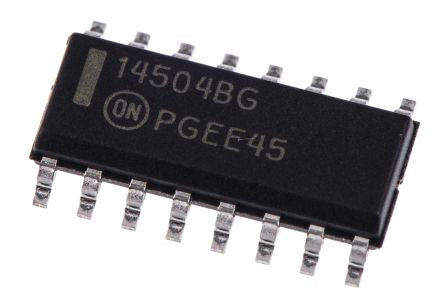

ON Semiconductor MC14504BDG, Logic Level Translator, Voltage Level Shifter, CMOS, TTL to CMOS, 3 → 18 V, 16-Pin [MC14504BDG]; 103-2927
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 4000 |
| Logic Function | Voltage Level Shifter |
| Translation | CMOS, TTL to CMOS |
| Maximum High Level Output Current | -4.2mA |
| Maximum Low Level Output Current | 4.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 550 ns @ 15 V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Dimensions | 10 x 4 x 1.5mm |
| Height | 1.5mm |
| Length | 10mm |
| Maximum Operating Supply Voltage | 18 V |
| Minimum Operating Supply Voltage | 3 V |
| Width | 4mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
