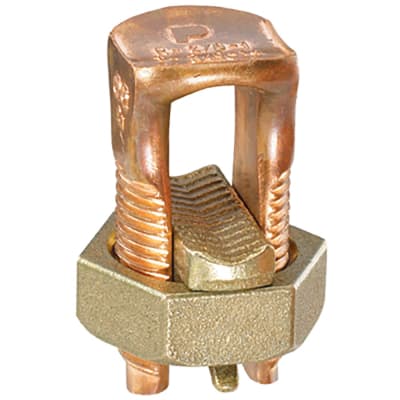

Panduit SBC3-C

Panduit Split bolt, copper, type SBC, #8 STR - #4 STR AWG. [SBC3-C]; PAO756

Mã kho: PAO756
Mã nhà sản xuất: SBC3-C
Tên nhà sản xuất: Panduit
348.550₫ - 348.550₫
348.550₫
348.550₫ - 348.550₫
348.550₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Split Bolts: Panduit SBC3-C

MÔ TẢ SẢN PHẨM

The SBC3-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of con

_THÔNG SỐ KỸ THUẬT:

Product Type Mechanical Connectors - Split Bolt
Connection Type Copper to Copper
Base Material Copper
Minimum Copper Conductor Size (AWG SOL) 8
Maximum Copper Conductor Size (AWG STR) 4
Standards Met UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C) 90
Maximum Voltage (V) 600
Overall Height (In.) 1.16
Overall Height (mm) 29.46
Sub Brand Pan-Lug™
Part Features high strength copper for corrosion resistance,extra long body,range taking,true hex design for correct fit
