Panduit lugs [A2/0-56RC-C], PAC981

Name: Panduit lugs [A2/0-56RC-C], PAC981
Brand: Panduit
SKU: PAC981
Price: 88300.0 VND
Availability: InStock

Mã kho: PAC981

Mã nhà sản xuất: A2/0-56RC-C

Tên nhà sản xuất: Panduit

88.300₫ - 88.300₫

88.300₫

88.300₫ - 88.300₫

88.300₫

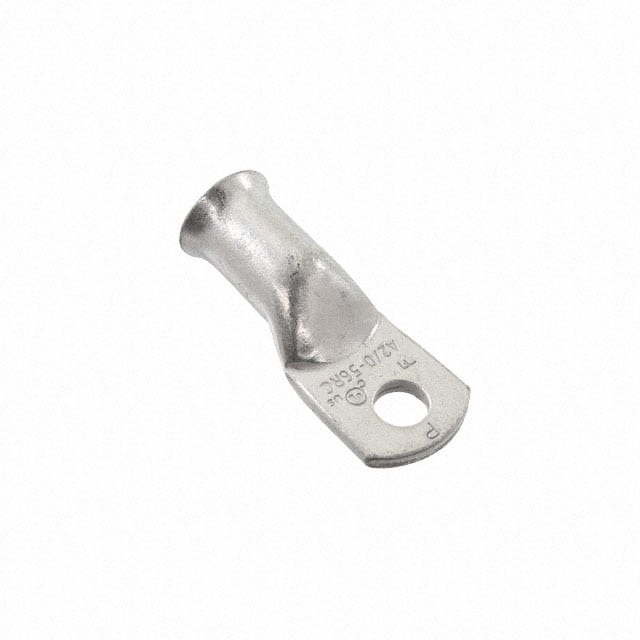

Battery Cable Lug, 2/0 AWG, 5/16" Stud

Note	Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Product Type	Lug
Lug Type	1 Stud Hole Lug
Base Material	Copper
Class K Copper Flex Conductor Size (AWG)	2/0 AWG STR
Sub Brand	Pan Lug
Stud Hole Size (mm)	7.9375
Barrel Type	Standard Barrel w/Flared Entry, No Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.352
Tongue Type	Round
Tongue Width (In.)	0.85
Tongue Width (mm)	21.59
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.302
Overall Length (In.)	2.16
Overall Length (mm)	54.864
Finish/Coating	Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Standards Met	UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Silver
Panduit Die Index Number	2/0
Wire Strip Length (mm)	23.8125
Part Features	Flared entry for ease of insertion, high conductivity copper, embossed wire size on lug, high pullout strength for heavy duty applications
