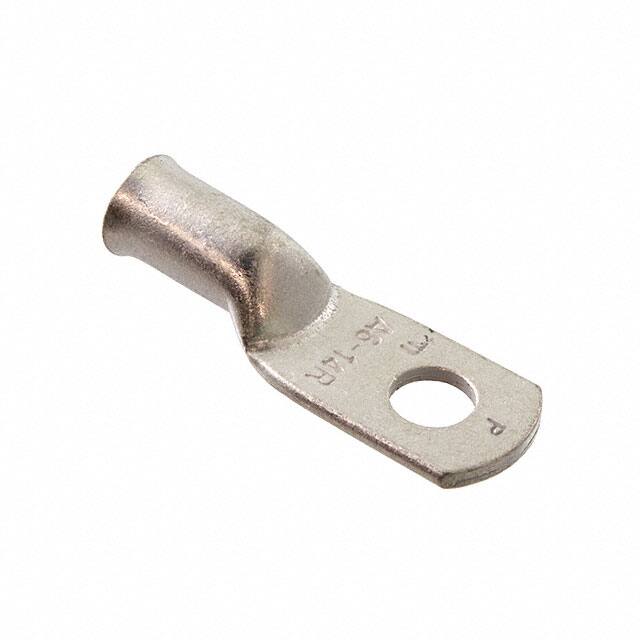

Panduit lugs [A6-14R-C], PAC986

Name: Panduit lugs [A6-14R-C], PAC986
Brand: Panduit
SKU: PAC986
Price: 18800.0 VND
Availability: InStock

Mã kho: PAC986

Mã nhà sản xuất: A6-14R-C

Tên nhà sản xuất: Panduit

18.800₫ - 18.800₫

18.800₫

18.800₫ - 18.800₫

18.800₫

Battery Cable Lug, 6 AWG, 1/4" Stud

Connection Type	NA
Note	Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Product Type	Lug
Lug Type	1 Stud Hole Lug
Base Material	Copper
Class K Copper Flex Conductor Size (AWG)	6 AWG STR
Sub Brand	Pan Lug
Stud Hole Size (mm)	6.35
Barrel Type	Standard Barrel w/Flared Entry, No Window
Barrel Length (In.)	0.5
Barrel Length (mm)	12.7
Tongue Type	Round
Tongue Width (In.)	0.54
Tongue Width (mm)	13.716
Tongue Angle	NA
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.778
Overall Length (In.)	1.47
Overall Length (mm)	37.338
Finish/Coating	Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Standards Met	UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Silver
Panduit Die Index Number	6
Wire Strip Length (mm)	14.2875
Includes	NA
Part Features	Flared entry for ease of insertion, high conductivity copper, embossed wire size on lug, high pullout strength for heavy duty applications
