Panduit lugs [CB35-36-CY], PAC994

Name: Panduit lugs [CB35-36-CY], PAC994
Brand: Panduit
SKU: PAC994
Availability: InStock

Mã kho: PAC994

Mã nhà sản xuất: CB35-36-CY

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit CB35-36-CY

MÔ TẢ SẢN PHẨM

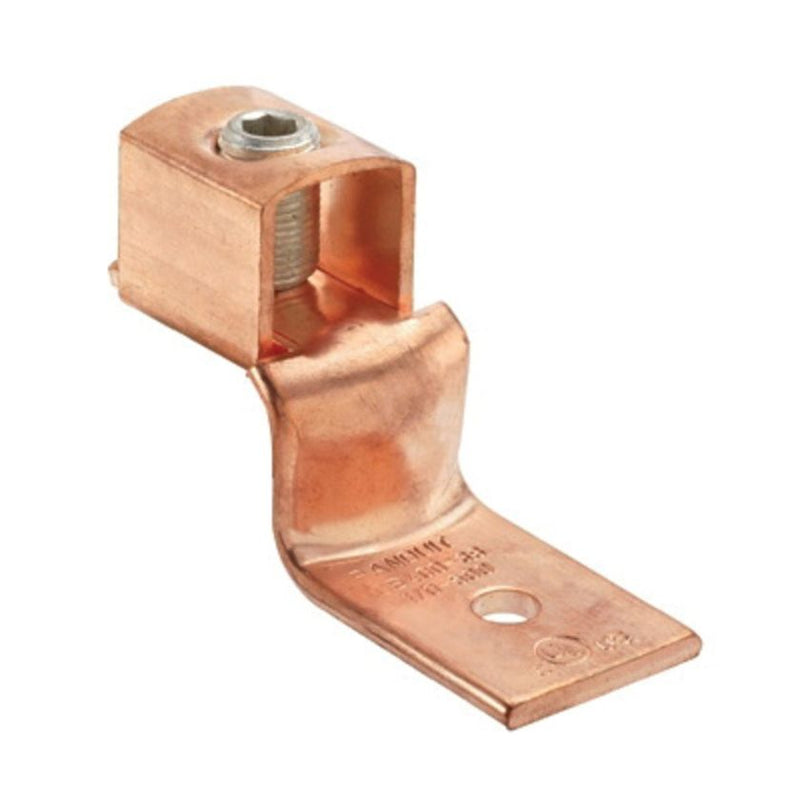

The CB35-36-CY Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable

_THÔNG SỐ KỸ THUẬT:

Application	Copper Mechanical Lug
Product Type	Mechanical Connectors - Lugs
Base Material	Copper
Minimum Copper Conductor Size (AWG STR)	14
Maximum Copper Conductor Size (AWG STR)	6
Stud Hole Size (In.)	3/16
Stud Hole Size (mm)	4.76
Number of Holes	1
Tongue Type	Offset Floating Tongue
Tongue Angle	Straight
Tongue Length (In.)	0.59
Tongue Length (mm)	14.9
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.7
Tongue Width (In.)	0.38
Tongue Width (mm)	9.6
Overall Height (In.)	0.5
Overall Height (mm)	12.7
Overall Length (In.)	1.24
Overall Length (mm)	31.4
Overall Width (In.)	0.38
Overall Width (mm)	9.6
Barrel Type	Single Barrel
Barrel Length (In.)	0.43
Barrel Length (mm)	10.9
Finish/Coating	Bare
Standards Met	cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Amperage (A)	50
Slotted Screw	YES
Sub Brand	Pan-Lug™
Part Features	Range taking,high strength copper,internal pressure bar,v collar.
