Panduit lugs [LAA400-58-2R], PAE821

Name: Panduit lugs [LAA400-58-2R], PAE821
Brand: Panduit
SKU: PAE821
Price: 1565210.0 VND
Availability: InStock

Mã kho: PAE821

Mã nhà sản xuất: LAA400-58-2R

Tên nhà sản xuất: Panduit

1.565.210₫ - 1.565.210₫

1.565.210₫

1.565.210₫ - 1.565.210₫

1.565.210₫

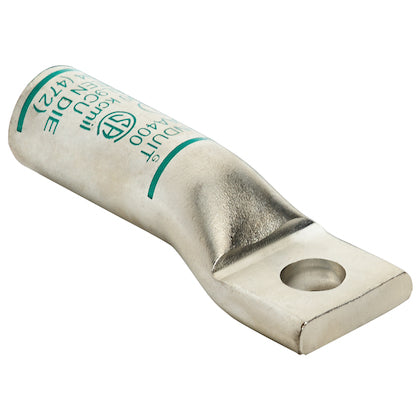

Aluminum Compression Lug, 1 Hole, 400 kcmil, 5/8" (15.9mm) Stud

Lug Type	1 Stud Hole Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	2.5
Barrel Length (mm)	63.5
Tongue Type	Standard
Tongue Width (In.)	1.61
Tongue Width (mm)	41
Tongue Angle	Straight
Tongue Thickness (In.)	0.41
Tongue Thickness (mm)	10.4
Overall Length (In.)	4.92
Overall Length (mm)	125
Finish/Coating	Tin-Plated
Standards Met	CSA Certified, UL listed 486A-486B File #E52164
Color Code	Green
Panduit Die Index Number	P94
Burndy Die Index Number	472
T & B Die Index Number	94
Wire Strip Length (In.)	2.56
Wire Strip Length (mm)	65.1
