Panduit lugs [LAB2/0-12-5], PAC058

Name: Panduit lugs [LAB2/0-12-5], PAC058
Brand: Panduit
SKU: PAC058
Price: 849770.0 VND
Availability: InStock

Mã kho: PAC058

Mã nhà sản xuất: LAB2/0-12-5

Tên nhà sản xuất: Panduit

849.770₫ - 849.770₫

849.770₫

849.770₫ - 849.770₫

849.770₫

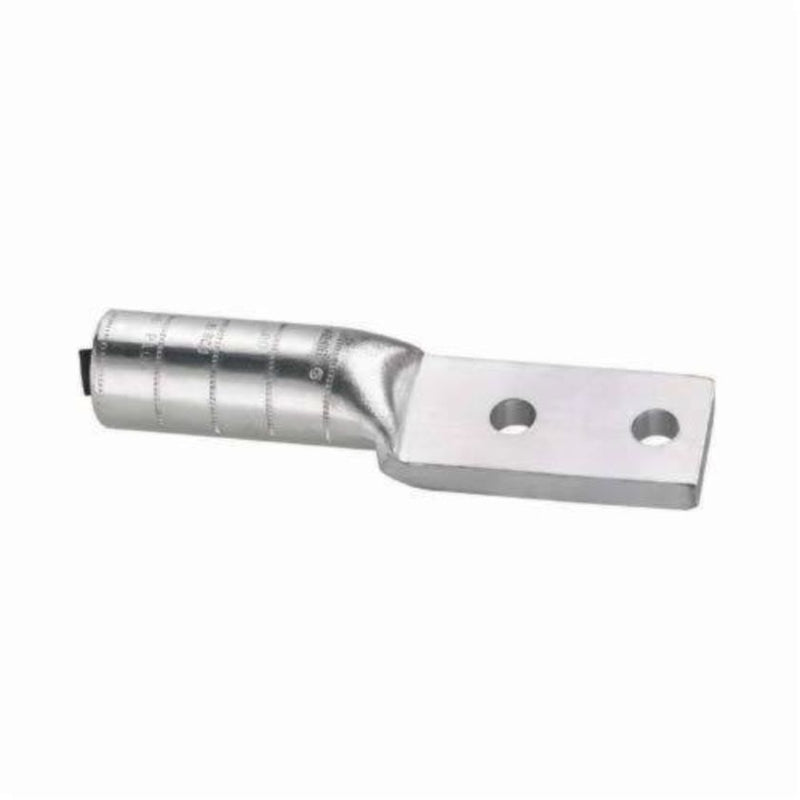

Two-hole, aluminum, long barrel, 2/0 AWG, 1/2 (12.7mm) stud hole.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Length (In.)	1.55
Tongue Type	Standard
Tongue Width (In.)	0.94
Tongue Width (mm)	23.9
Tongue Thickness (In.)	0.25
Tongue Thickness (mm)	6.4
Overall Length (In.)	5.55
Overall Length (mm)	141
Color Code	Olive
Panduit Die Index Number	P54
Burndy Die Index Number	297
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Includes	Connector barrel pre-filled with oxide inhibiting joint compound
Part Features	Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion.
