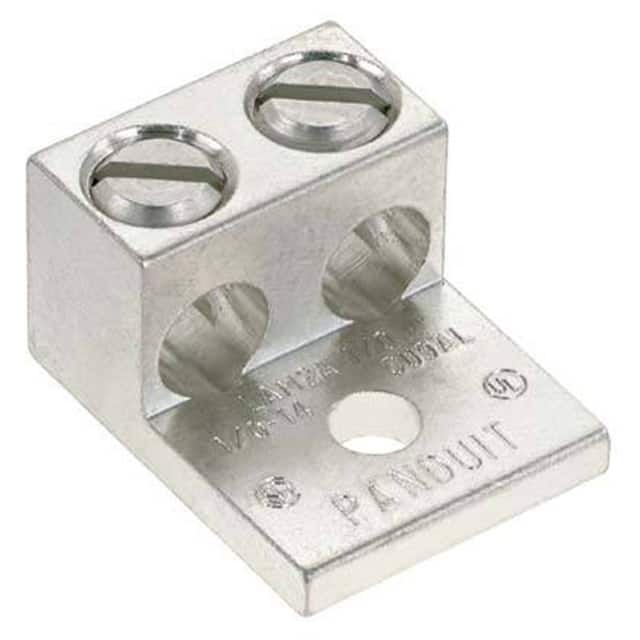

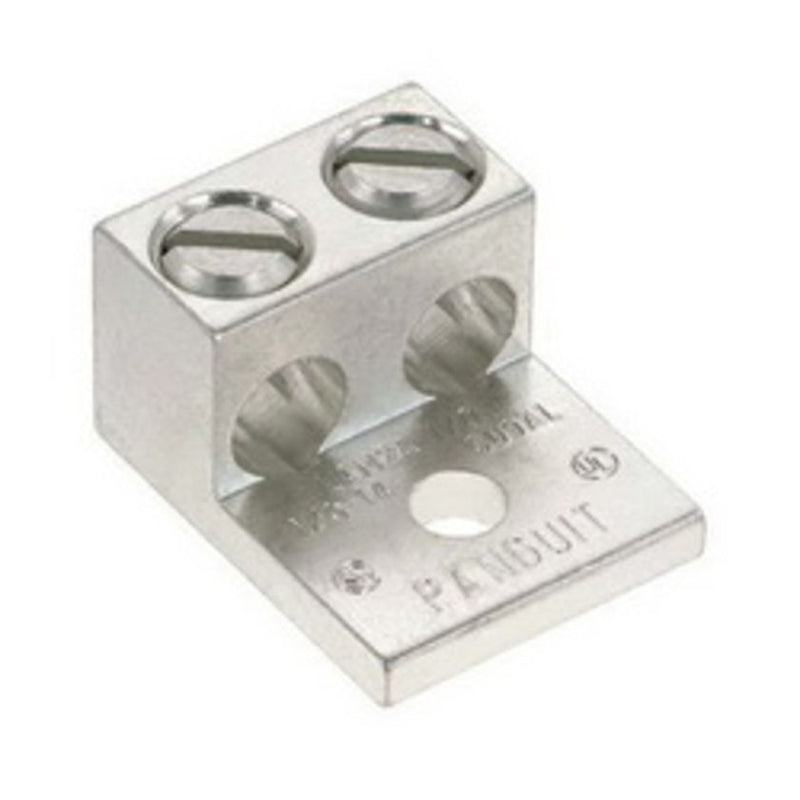

Panduit lugs [LAM2A600-12-6Y], PAC070
Panduit lugs [LAM2A600-12-6Y], PAC070

Panduit lugs [LAM2A600-12-6Y], PAC070

Mã kho: PAC070
Mã nhà sản xuất: LAM2A600-12-6Y
Tên nhà sản xuất: Panduit
1.173.850₫ - 1.173.850₫
1.173.850₫
1.173.850₫ - 1.173.850₫
1.173.850₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM2A600-12-6Y

MÔ TẢ SẢN PHẨM

The LAM2A600-12-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides

_THÔNG SỐ KỸ THUẬT:

Application Stranded Aluminum or Copper Code Conductor
Note LAM2A600-12-6Y replaces LAM2A600-12-6
Product Type Mechanical Connectors - Lugs
Base Material Aluminum
Minimum Aluminum Conductor Size (AWG) 2
Minimum Copper Conductor Size (AWG STR) 2
Maximum Aluminum Conductor Size (kcmil) 600
Maximum Copper Conductor Size (kcmil) 600
Stud Hole Size (In.) 1/2
Number of Holes 1
Tongue Type Straight Tongue
Tongue Angle Straight
Tongue Length (In.) 1.81
Tongue Length (mm) 45.9
Tongue Thickness (In.) 0.44
Tongue Thickness (mm) 11.2
Tongue Width (In.) 2
Tongue Width (mm) 50.8
Overall Height (In.) 1.56
Overall Height (mm) 39.6
Overall Length (In.) 3.19
Overall Length (mm) 81
Overall Width (In.) 2.38
Overall Width (mm) 60.4
Barrel Type Two Barrel
Barrel Length (In.) 1.38
Barrel Length (mm) 35
Finish/Coating Tin-Plated
Standards Met cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C) 90
Maximum Voltage (V) 600
Hex Size (In.) 3/8
Hex Size (mm) 9.52
Sub Brand Pan-Lug™
Wire Strip Length (In.) 1.38
Wire Strip Length (mm) 35
Part Features Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
