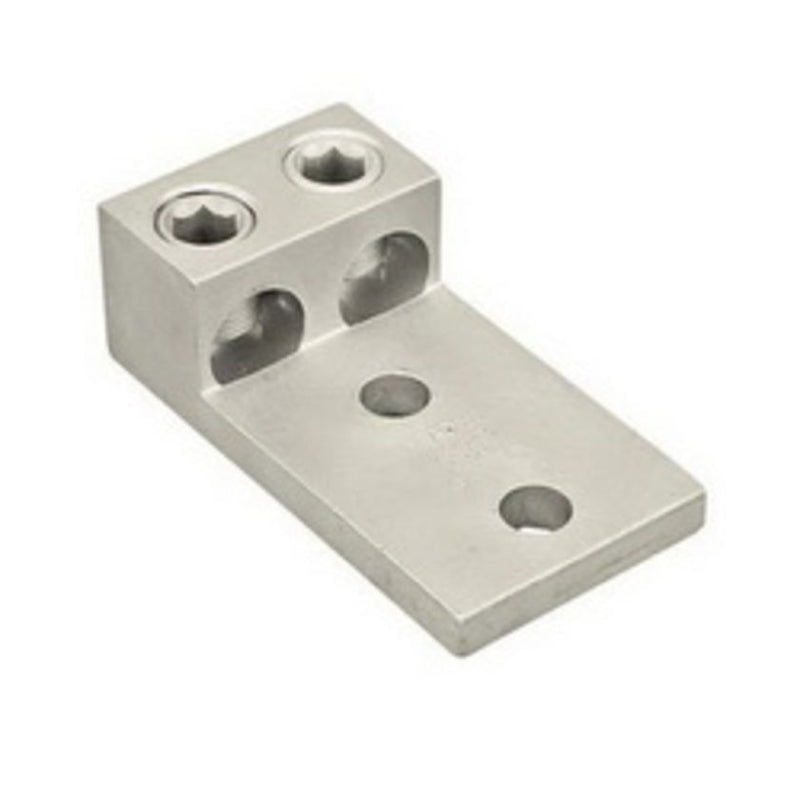

Panduit lugs [LAM2B350-12-3Y], PAC071

Name: Panduit lugs [LAM2B350-12-3Y], PAC071
Brand: Panduit
SKU: PAC071
Price: 1112440.0 VND
Availability: InStock

Mã kho: PAC071

Mã nhà sản xuất: LAM2B350-12-3Y

Tên nhà sản xuất: Panduit

1.112.440₫ - 1.112.440₫

1.112.440₫

1.112.440₫ - 1.112.440₫

1.112.440₫

Two-hole, aluminum, two barrel lug, dual barrel, type LAM2B, NEMA hole sizes and spacing, #6 AWG - 350 kcmil, 1/2 (12.7mm) stud hole.

Application	Stranded Aluminum or Copper Code Conductor
Note	LAM2B350-12-3Y replaces LAM2B350-12-3
Product Type	Mechanical Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Number of Holes	2
Tongue Type	Straight
Tongue Length (In.)	3.06
Tongue Length (mm)	77.7
Tongue Thickness (In.)	0.25
Tongue Thickness (mm)	6.4
Tongue Width (In.)	1.91
Tongue Width (mm)	49.3
Overall Height (In.)	1.3
Overall Height (mm)	31.8
Overall Length (In.)	4.19
Overall Length (mm)	106.4
Standards Met	UL Listed and CSA Certified for use up to 600 V and UL
UL Temperature Rating (°C)	90
Hex Size (mm)	7.9
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
