Panduit lugs [LAM2SA300-38-3], PAE479

Name: Panduit lugs [LAM2SA300-38-3], PAE479
Brand: Panduit
SKU: PAE479
Price: 709050.0 VND
Availability: InStock

Mã kho: PAE479

Mã nhà sản xuất: LAM2SA300-38-3

Tên nhà sản xuất: Panduit

709.050₫ - 709.050₫

709.050₫

709.050₫ - 709.050₫

709.050₫

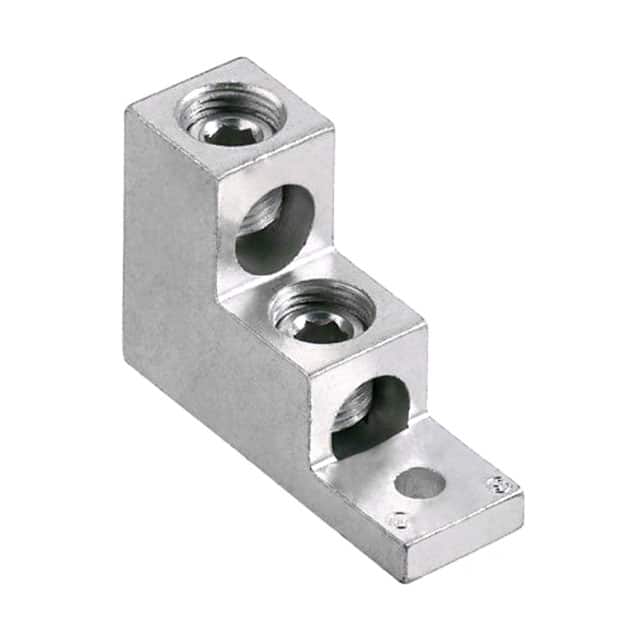

One-hole, aluminum, vertical two barrel lug, dual barrel, type LAM2SA, #6 AWG - 300 kcmil, 3/8 (9.5mm) stud hole.

Application	Stranded Aluminum or Copper Code Conductor
Product Type	Aluminum Mechanical Connectors, One Hole, Vertical Two Barrel - Lugs
Stud Hole Size (In.)	3/8
Tongue Type	Straight
Tongue Thickness (In.)	0.5
Tongue Width (In.)	1
Tongue Width (mm)	25.4
Overall Height (In.)	2
Overall Height (mm)	50.8
Overall Length (In.)	3
Overall Length (mm)	76.2
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
