Panduit lugs [LAM3B250-12-1Y], PAC076

Name: Panduit lugs [LAM3B250-12-1Y], PAC076
Brand: Panduit
SKU: PAC076
Price: 2540130.0 VND
Availability: InStock

Mã kho: PAC076

Mã nhà sản xuất: LAM3B250-12-1Y

Tên nhà sản xuất: Panduit

2.540.130₫ - 2.540.130₫

2.540.130₫

2.540.130₫ - 2.540.130₫

2.540.130₫

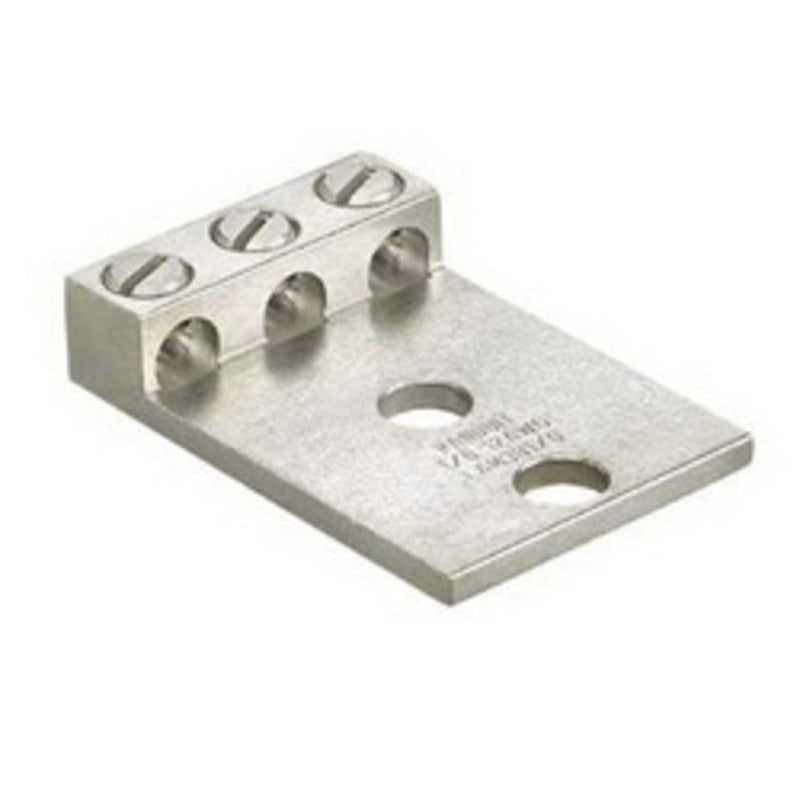

Two-hole, aluminum, three barrel lug, type LAM3B, NEMA hole sizes and spacing, #6 AWG - 250 kcmil, 1/2 (12.7mm) stud hole.

Note	LAM3B250-12-1Y replaces LAM3B250-12-1
Product Type	Mechanical Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	45
Number of Holes	2
Tongue Type	Straight
Tongue Length (In.)	3
Tongue Length (mm)	76.2
Tongue Thickness (In.)	0.31
Tongue Thickness (mm)	7.9
Tongue Width (In.)	2.82
Tongue Width (mm)	71.4
Overall Height (In.)	1.2
Overall Height (mm)	31.8
Overall Length (In.)	4
Overall Length (mm)	106.4
Standards Met	UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Hex Size (mm)	7.9
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
