Panduit lugs [LAM4D250-12-1Y], PAC078

Name: Panduit lugs [LAM4D250-12-1Y], PAC078
Brand: Panduit
SKU: PAC078
Price: 3402990.0 VND
Availability: InStock

Mã kho: PAC078

Mã nhà sản xuất: LAM4D250-12-1Y

Tên nhà sản xuất: Panduit

3.402.990₫ - 3.402.990₫

3.402.990₫

3.402.990₫ - 3.402.990₫

3.402.990₫

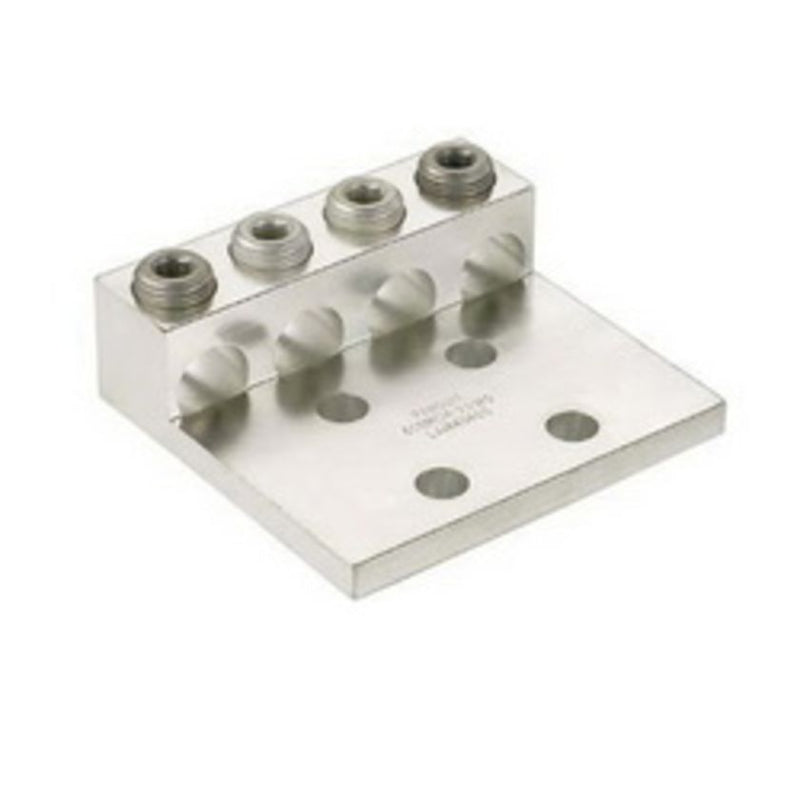

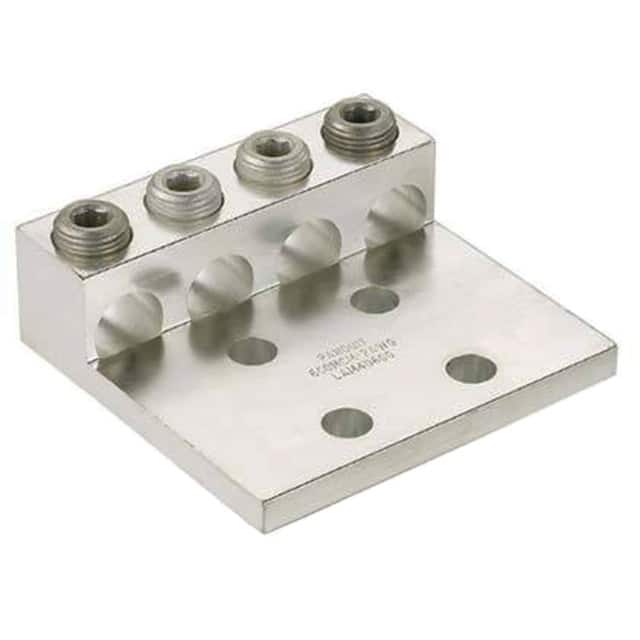

Four-hole, aluminum, four barrel lug, type LAM4D, NEMA hole sizes and spacing, #6 AWG - 250 kcmil, 1/2 (12.7mm) stud hole.

Note	LAM4D250-12-1Y replaces LAM4D250-12-1
Product Type	Mechanical Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Number of Holes	4
Tongue Type	Straight
Tongue Length (In.)	3.25
Tongue Length (mm)	82.6
Tongue Thickness (In.)	0.31
Tongue Thickness (mm)	7.9
Tongue Width (In.)	4.04
Tongue Width (mm)	102.6
Overall Height (In.)	1.2
Overall Height (mm)	30.2
Overall Length (In.)	4.25
Overall Length (mm)	108
Standards Met	UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Hex Size (mm)	7.9
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
