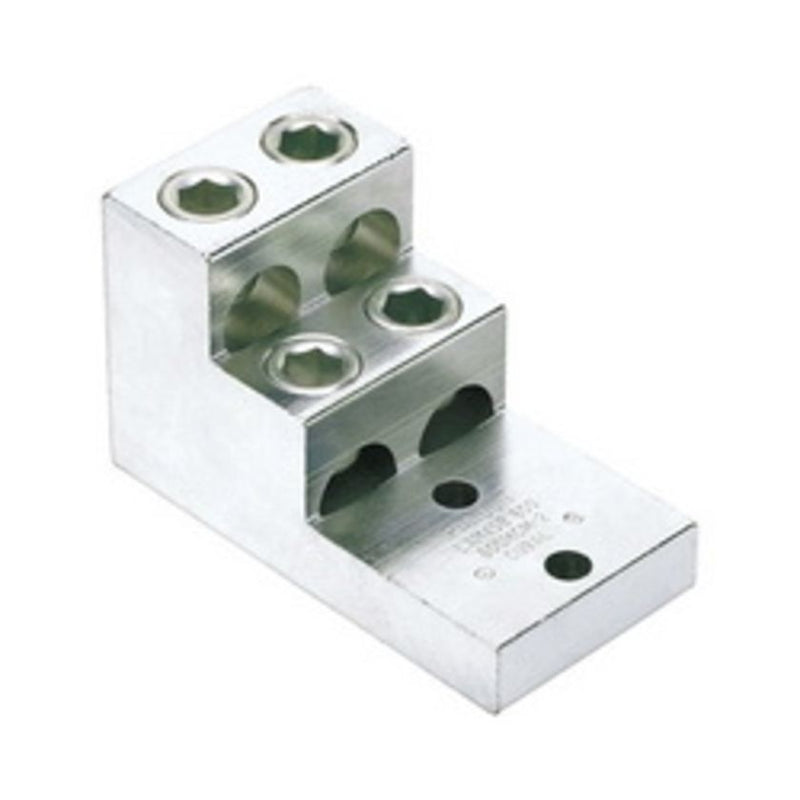

Two-hole, aluminum, vertical four barrel lug, type LAM4SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.

Note	LAM4SB600-38-1Y replaces LAM4SB600-38-1
Product Type	Aluminum Mechanical Connectors, Two Hole, Vertical Four Barrel - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Spacing (In.)	1.38
Stud Hole Spacing (mm)	35.1
Number of Holes	2
Tongue Type	Straight
Tongue Length (In.)	2.34
Tongue Length (mm)	59.4
Tongue Thickness (In.)	0.75
Tongue Thickness (mm)	19.1
Tongue Width (In.)	2.47
Tongue Width (mm)	62.7
Overall Height (In.)	3
Overall Height (mm)	76.2
Overall Length (In.)	4.91
Overall Length (mm)	124.7
Hex Size (mm)	9.5
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
