Panduit lugs [LAMA1/0-56-Q], PAD018

Mã kho: PAD018
Mã nhà sản xuất: LAMA1/0-56-Q
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAMA1/0-56-Q

MÔ TẢ SẢN PHẨM

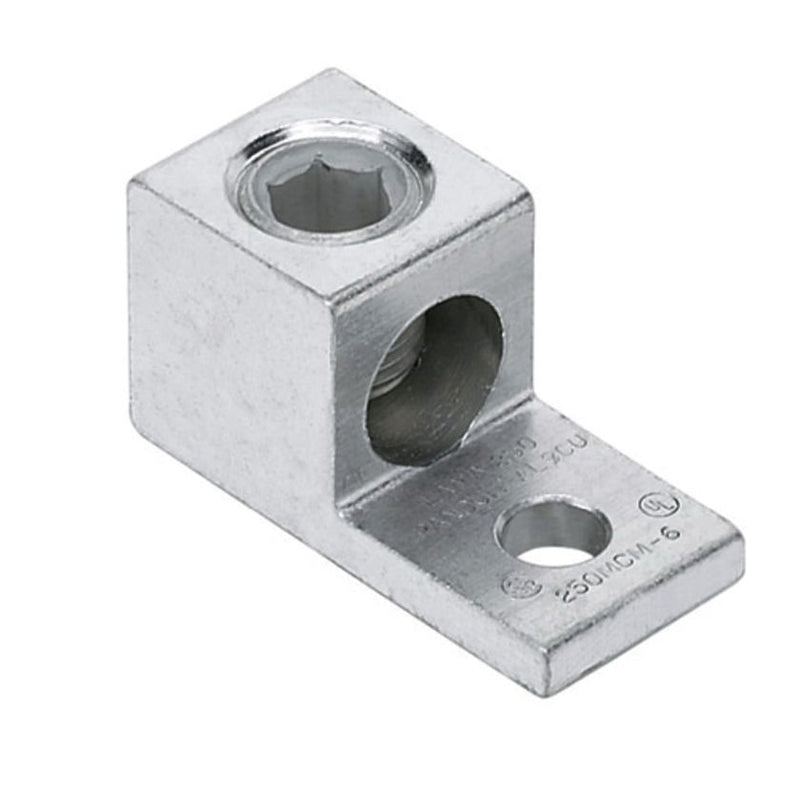

One-hole, aluminum, single barrel lug, type LAMA, 5/16 (7.9mm) stud hole, bulk package.

_THÔNG SỐ KỸ THUẬT:

Product Type Mechanical Connectors - Lugs
Stud Hole Size (In.) 5/16
Number of Holes 1
Tongue Type Straight
Tongue Length (In.) 0.85
Tongue Length (mm) 21.3
Tongue Thickness (In.) 0.19
Tongue Thickness (mm) 4.8
Tongue Width (In.) 0.62
Tongue Width (mm) 15.7
Overall Height (In.) 0.8
Overall Height (mm) 20
Overall Length (In.) 1.47
Overall Length (mm) 37.3
Standards Met UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
UL Temperature Rating (°C) 90
Sub Brand Pan-Lug
Part Features Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
