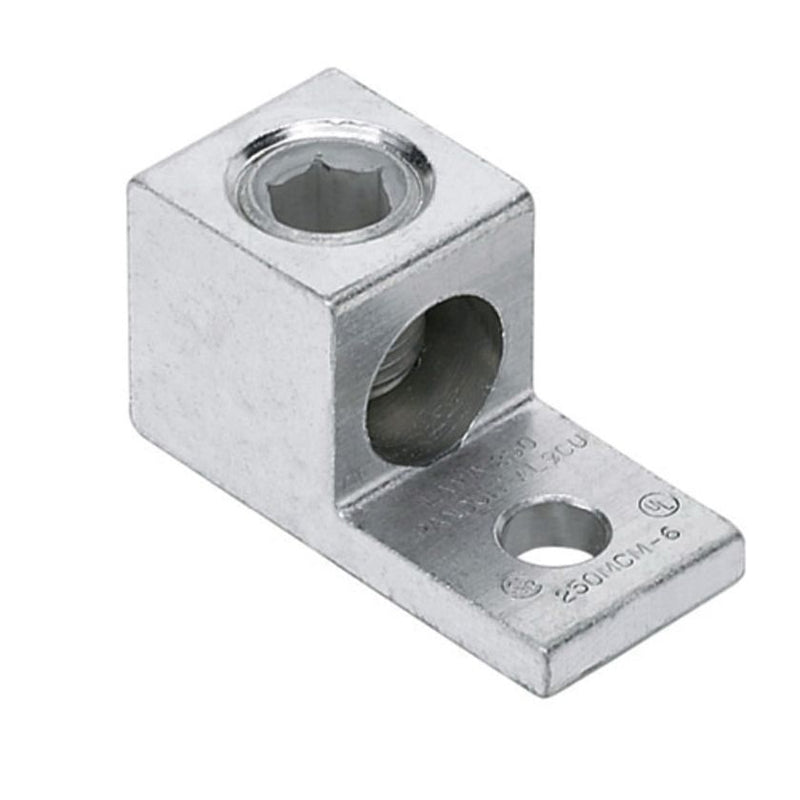

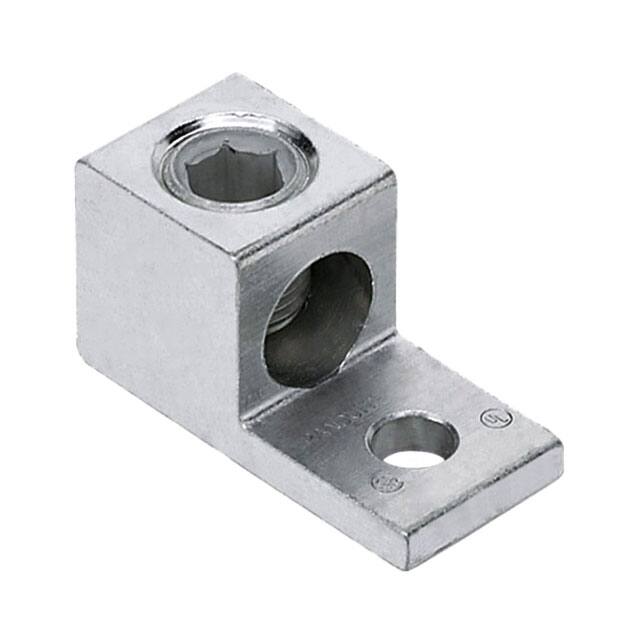

Panduit lugs [LAMA250-56-QY], PAC084
Panduit lugs [LAMA250-56-QY], PAC084

Panduit lugs [LAMA250-56-QY], PAC084

Mã kho: PAC084
Mã nhà sản xuất: LAMA250-56-QY
Tên nhà sản xuất: Panduit
250.320₫ - 250.320₫
250.320₫
250.320₫ - 250.320₫
250.320₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAMA250-56-QY

MÔ TẢ SẢN PHẨM

The LAMA250-56-QY in-Plated Aluminum Mechanical Lug, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provide

_THÔNG SỐ KỸ THUẬT:

Application Stranded Aluminum or Copper Code Conductor
Note LAMA250-56-QY replaces LAMA250-56-Q
Product Type Aluminum Mechanical Connectors, One Hole, Single Barrel - Lugs
Base Material Aluminum
Minimum Aluminum Conductor Size (AWG) 6
Minimum Copper Conductor Size (AWG STR) 6
Maximum Aluminum Conductor Size (kcmil) 250
Maximum Copper Conductor Size (kcmil) 250
Stud Hole Size (In.) 5/16
Number of Holes 1
Tongue Type Straight Tongue
Tongue Angle Straight
Tongue Length (In.) 0.99
Tongue Length (mm) 25.1
Tongue Thickness (In.) 0.25
Tongue Thickness (mm) 6.3
Tongue Width (In.) 0.99
Tongue Width (mm) 25.1
Overall Height (In.) 1.1
Overall Height (mm) 27.9
Overall Length (In.) 1.99
Overall Length (mm) 50.5
Overall Width (In.) 0.99
Overall Width (mm) 25.1
Barrel Type Single Barrel
Barrel Length (In.) 1
Barrel Length (mm) 25.4
Finish/Coating Tin-Plated
Standards Met cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C) 90
Maximum Voltage (V) 600
Hex Size (In.) 5/16
Hex Size (mm) 7.9
Sub Brand Pan-Lug™
Wire Strip Length (In.) 1
Wire Strip Length (mm) 25.4
Part Features Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
