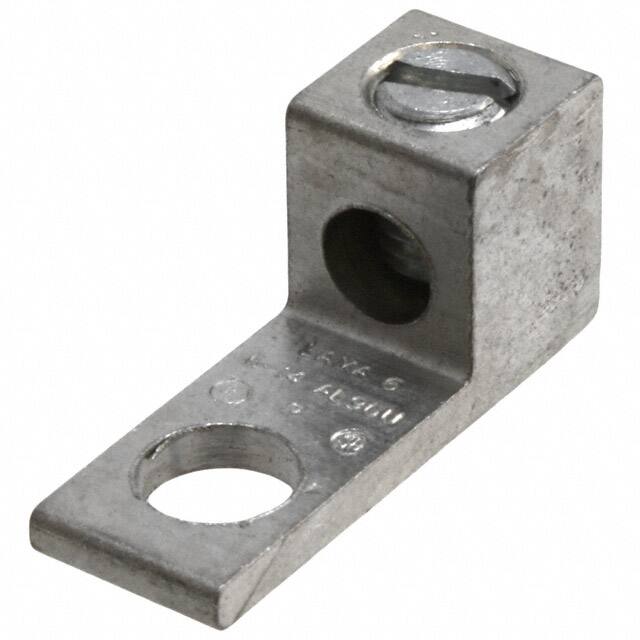

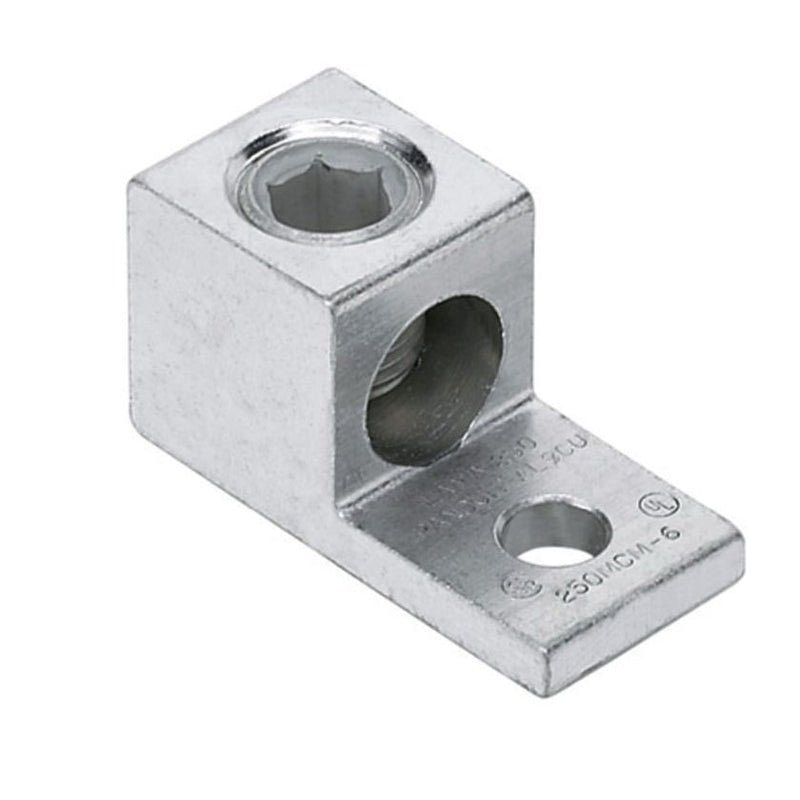

Panduit lugs [LAMA6-14-QY], PAC088
Panduit lugs [LAMA6-14-QY], PAC088

Panduit lugs [LAMA6-14-QY], PAC088

Mã kho: PAC088
Mã nhà sản xuất: LAMA6-14-QY
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAMA6-14-QY

MÔ TẢ SẢN PHẨM

The LAMA6-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw pr

_THÔNG SỐ KỸ THUẬT:

Application Stranded Aluminum or Copper Code Conductor
Note LAMA6-14-QY replaces LAMA6-14-Q
Product Type Aluminum Mechanical Connectors, One Hole, Single Barrel - Lugs
Base Material Aluminum
Minimum Aluminum Conductor Size (AWG) 14
Minimum Copper Conductor Size (AWG STR) 14
Maximum Aluminum Conductor Size (AWG) 6
Maximum Copper Conductor Size (AWG STR) 6
Stud Hole Size (In.) 1/4
Stud Hole Size (mm) 6.35
Number of Holes 1
Tongue Type Straight Tongue
Tongue Angle Straight
Tongue Length (In.) 0.69
Tongue Length (mm) 17.5
Tongue Thickness (In.) 0.09
Tongue Thickness (mm) 2.2
Tongue Width (In.) 0.5
Tongue Width (mm) 12.7
Overall Height (In.) 0.5
Overall Height (mm) 12.7
Overall Length (In.) 1.06
Overall Length (mm) 26.9
Overall Width (In.) 0.5
Overall Width (mm) 12.7
Barrel Type Single Barrel
Barrel Length (In.) 0.37
Barrel Length (mm) 9.5
Finish/Coating Tin-Plated
Standards Met cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C) 90
Maximum Voltage (V) 600
Slotted Screw YES
Sub Brand Pan-Lug™
Wire Strip Length (In.) 0.38
Wire Strip Length (mm) 9.6
Part Features Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
