Panduit lugs [LAMA600S-38-6Y], PAD020

Name: Panduit lugs [LAMA600S-38-6Y], PAD020
Brand: Panduit
SKU: PAD020
Availability: InStock

Mã kho: PAD020

Mã nhà sản xuất: LAMA600S-38-6Y

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

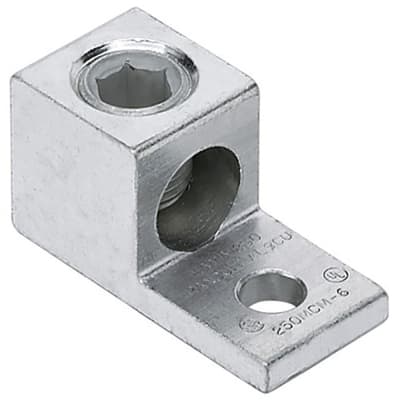

One-hole, aluminum, single barrel lug, type LAMA, #4 AWG - 600 kcmil, 1/0 AWG - 250 kcmil, 3/8 (9.5mm) stud hole.

Note	LAMA600S-38-6Y replaces LAMA600S-38-6
Product Type	Mechanical Connectors - Lugs
Stud Hole Size (In.)	3/8
Number of Holes	1
Tongue Type	Straight
Tongue Length (In.)	1.5
Tongue Length (mm)	38.1
Tongue Thickness (In.)	0.31
Tongue Thickness (mm)	7.9
Tongue Width (In.)	1.38
Tongue Width (mm)	35.1
Overall Height (In.)	1.8
Overall Height (mm)	46
Overall Length (In.)	2.81
Overall Length (mm)	71.4
Standards Met	UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Hex Size (mm)	9.5
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
