Panduit lugs [LCA1/0-14F-X], PAC101

Name: Panduit lugs [LCA1/0-14F-X], PAC101
Brand: Panduit
SKU: PAC101
Price: 269850.0 VND
Availability: InStock

Mã kho: PAC101

Mã nhà sản xuất: LCA1/0-14F-X

Tên nhà sản xuất: Panduit

269.850₫ - 269.850₫

269.850₫

269.850₫ - 269.850₫

269.850₫

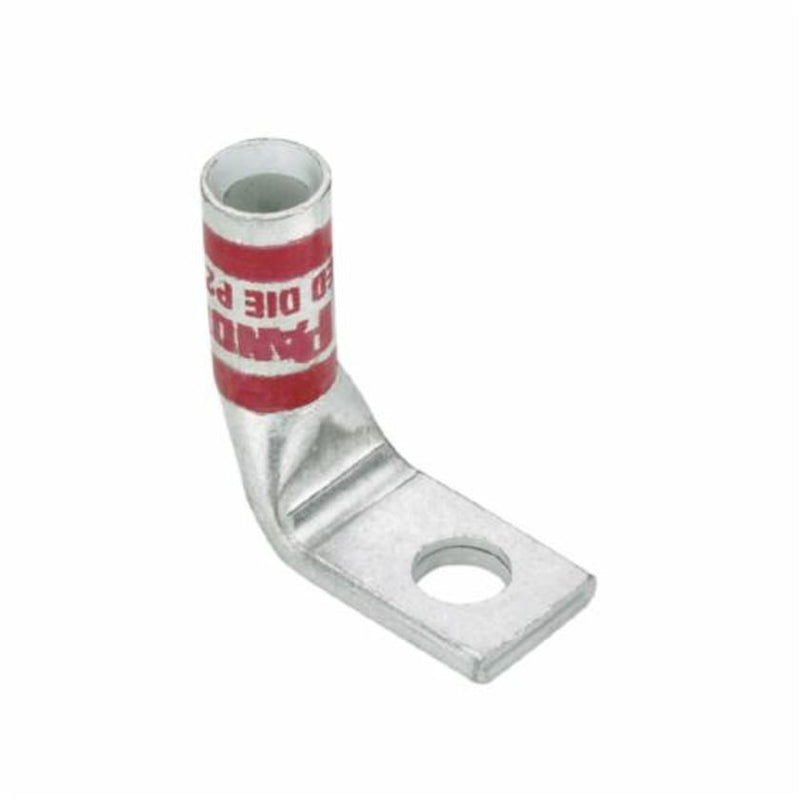

One-hole, standard barrel with window lug, 1/0 AWG wire, 90° angle tongue, 1/4 stud hole.

Copper Conductor Size (AWG)	1/0
Copper Conductor Size (kcmil)	106
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.94
Barrel Length (mm)	23.9
Tongue Type	Standard
Tongue Width (In.)	0.76
Tongue Width (mm)	19.3
Tongue Angle	90°
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	1.45
Overall Length (mm)	36.8
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25.4
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
