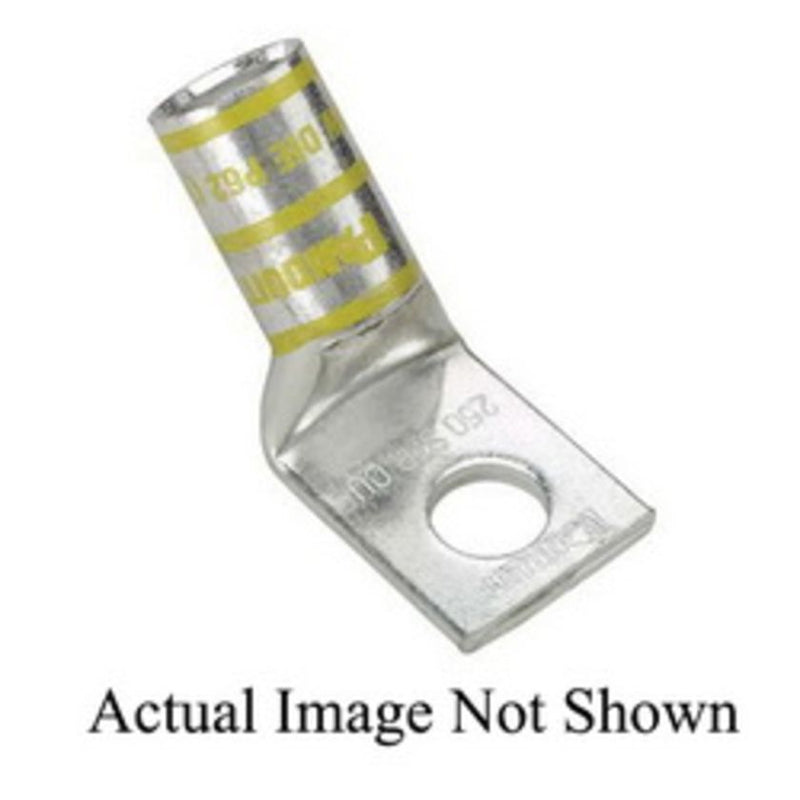

Panduit lugs [LCA2-14H-Q], PAE824

Mã kho: PAE824
Mã nhà sản xuất: LCA2-14H-Q
Tên nhà sản xuất: Panduit
Original price 362.990₫ - Original price 362.990₫
Original price
362.990₫
362.990₫ - 362.990₫
Current price 362.990₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA2-14H-Q

MÔ TẢ SẢN PHẨM

One-hole, standard barrel with window lug, #2 AWG wire, 45° angle tongue, 1/4 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #2
Copper Conductor Size (kcmil) 66.36
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.88
Barrel Length (mm) 22.4
Tongue Type Standard
Tongue Width (In.) 0.6
Tongue Width (mm) 15.2
Tongue Angle 45°
Tongue Thickness (In.) 0.1
Tongue Thickness (mm) 2.5
Overall Length (In.) 1.49
Overall Length (mm) 37.8
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Color Code Brown
Panduit Die Index Number P33
Burndy Die Index Number 10
Wire Strip Length (mm) 23.8
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
