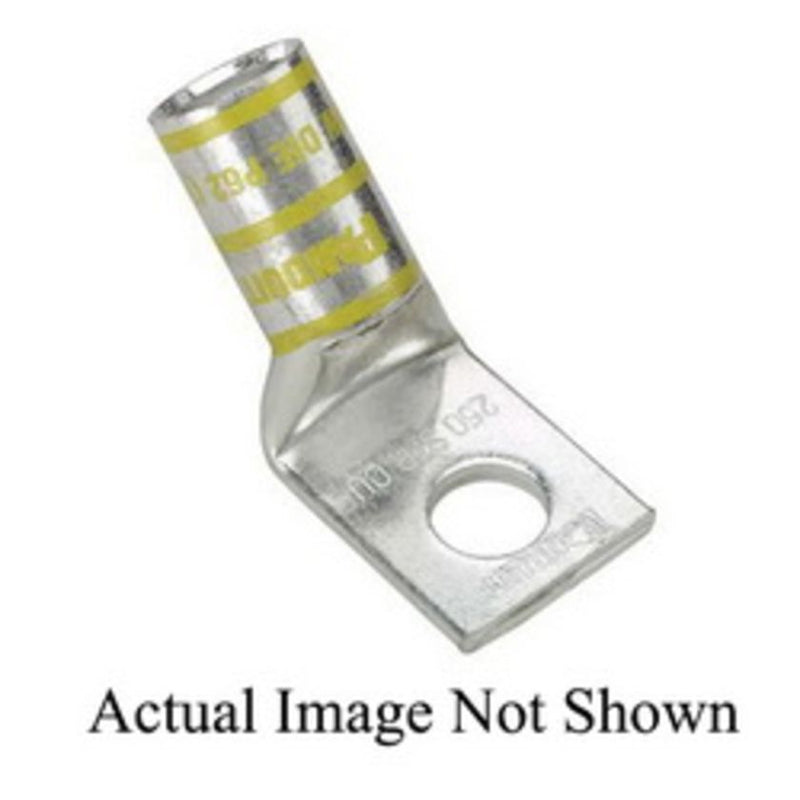

Panduit lugs [LCA2-56H-Q], PAD046

Panduit lugs [LCA2-56H-Q], PAD046

Mã kho: PAD046
Mã nhà sản xuất: LCA2-56H-Q
Tên nhà sản xuất: Panduit
184.580₫ - 184.580₫
184.580₫
184.580₫ - 184.580₫
184.580₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA2-56H-Q

MÔ TẢ SẢN PHẨM

One-hole, standard barrel with window lug, #2 AWG wire, 45° angle tongue, 5/16 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #2
Copper Conductor Size (kcmil) 66.36
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.491
Stud Hole Size (mm) 7.9
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.88
Barrel Length (mm) 22.4
Tongue Type Standard
Tongue Width (In.) 0.66
Tongue Width (mm) 16.8
Tongue Angle 45°
Tongue Thickness (In.) 0.1
Tongue Thickness (mm) 2.5
Overall Length (In.) 1.61
Overall Length (mm) 40.9
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Color Code Brown
Panduit Die Index Number P33
Burndy Die Index Number 10
Wire Strip Length (mm) 23.8
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
