Panduit lugs [LCA300-38H-X], PAC144

Name: Panduit lugs [LCA300-38H-X], PAC144
Brand: Panduit
SKU: PAC144
Price: 859570.0 VND
Availability: InStock

Mã kho: PAC144

Mã nhà sản xuất: LCA300-38H-X

Tên nhà sản xuất: Panduit

859.570₫ - 859.570₫

859.570₫

859.570₫ - 859.570₫

859.570₫

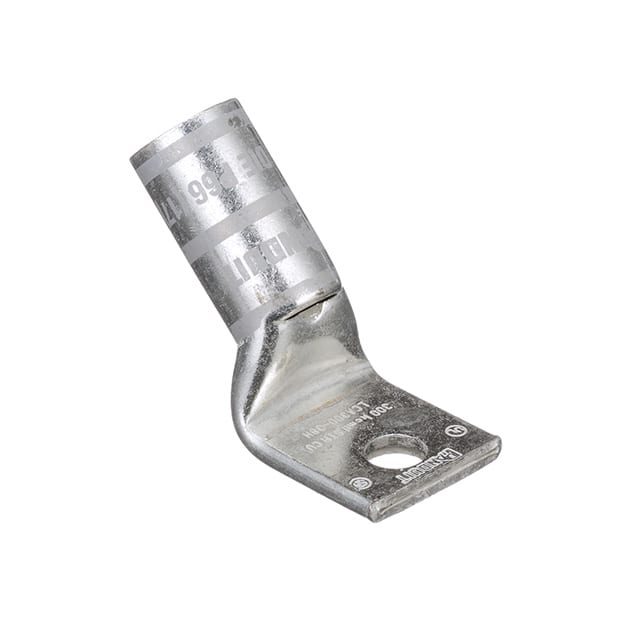

One-hole, standard barrel with window lug, 300 kcmil cable, 45° angle tongue, 3/8 stud hole.

Copper Conductor Size (kcmil)	300
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Standard
Tongue Width (In.)	1.19
Tongue Width (mm)	30.2
Tongue Angle	45°
Tongue Thickness (In.)	0.16
Tongue Thickness (mm)	4.1
Overall Length (In.)	2.55
Overall Length (mm)	64.8
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	White
Panduit Die Index Number	P66
Burndy Die Index Number	17
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
