Panduit lugs [LCA350-38F-X], PAC159

Name: Panduit lugs [LCA350-38F-X], PAC159
Brand: Panduit
SKU: PAC159
Price: 466610.0 VND
Availability: InStock

Mã kho: PAC159

Mã nhà sản xuất: LCA350-38F-X

Tên nhà sản xuất: Panduit

466.610₫ - 466.610₫

466.610₫

466.610₫ - 466.610₫

466.610₫

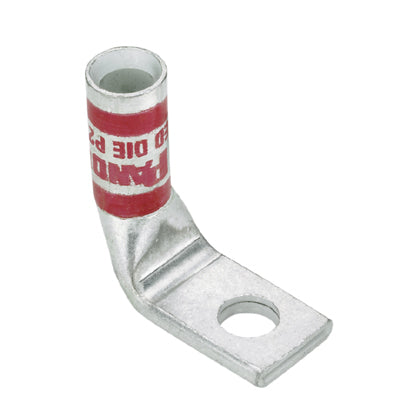

One-hole, standard barrel with window lug, 350 kcmil cable, 90° angle tongue, 3/8 stud hole.

Copper Conductor Size (kcmil)	350
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Standard
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	90°
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	2.13
Overall Length (mm)	54.1
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
