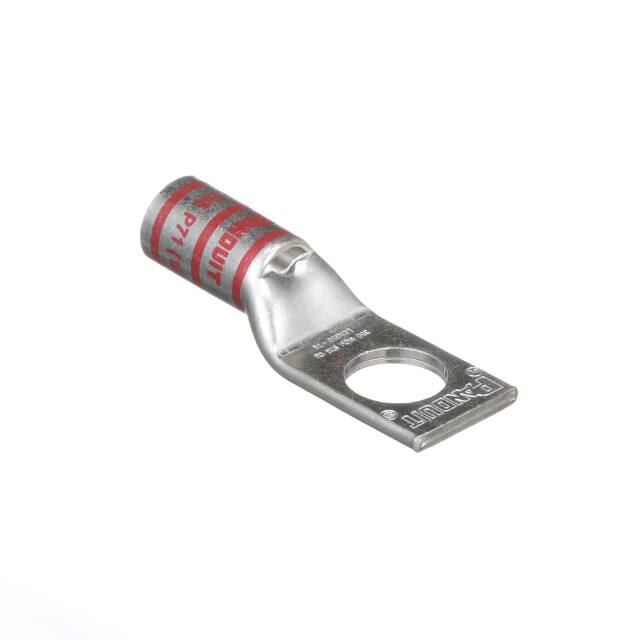

Panduit lugs [LCA350-78-X], PAC164

Mã kho: PAC164
Mã nhà sản xuất: LCA350-78-X
Tên nhà sản xuất: Panduit
Original price 678.230₫ - Original price 678.230₫
Original price
678.230₫
678.230₫ - 678.230₫
Current price 678.230₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA350-78-X

MÔ TẢ SẢN PHẨM

One-hole, standard barrel with window lug, 350 kcmil cable, 7/8 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (kcmil) 350
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.954
Stud Hole Size (mm) 22.2
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.44
Barrel Length (mm) 36.6
Tongue Type Standard
Tongue Width (In.) 1.28
Tongue Width (mm) 32.5
Tongue Angle Straight
Tongue Thickness (In.) 0.17
Tongue Thickness (mm) 4.3
Overall Length (In.) 3.74
Overall Length (mm) 95
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Color Code Red
Panduit Die Index Number P71
Burndy Die Index Number 18
Wire Strip Length (In.) 1.5
Wire Strip Length (mm) 38.1
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
