Panduit lugs [LCA400-38H-6], PAC185

Mã kho: PAC185
Mã nhà sản xuất: LCA400-38H-6
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA400-38H-6

MÔ TẢ SẢN PHẨM

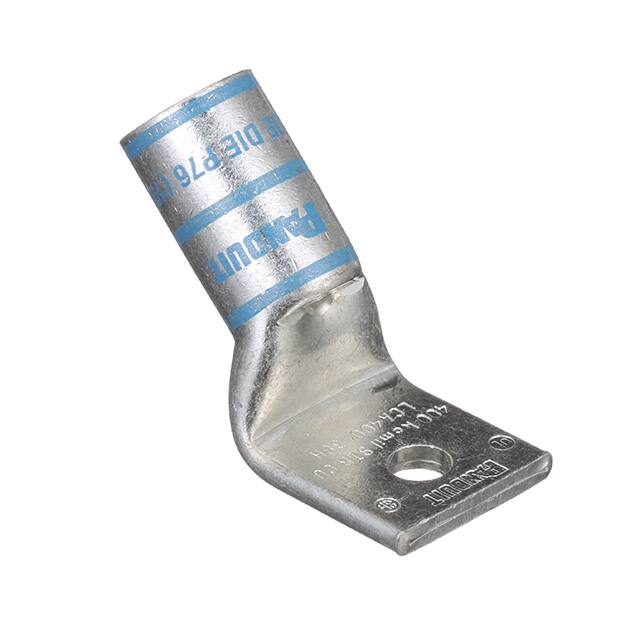

One-hole, standard barrel with window lug, 400 kcmil cable, 45° angle tongue, 3/8 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (kcmil) 400
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.95
Stud Hole Size (mm) 9.5
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.5
Barrel Length (mm) 38.1
Tongue Type Standard
Tongue Width (In.) 1.39
Tongue Width (mm) 35.3
Tongue Angle 45°
Tongue Thickness (In.) 0.18
Tongue Thickness (mm) 4.6
Overall Length (In.) 2.85
Overall Length (mm) 72.4
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Color Code Blue
Panduit Die Index Number P76
Burndy Die Index Number 19
Wire Strip Length (In.) 1.56
Wire Strip Length (mm) 39.7
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
