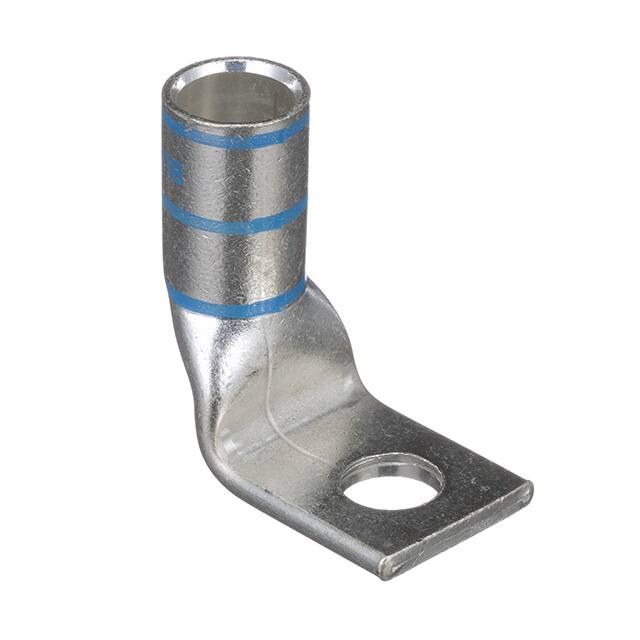

Panduit lugs [LCA400-58F-6], PAC187

Name: Panduit lugs [LCA400-58F-6], PAC187
Brand: Panduit
SKU: PAC187
Availability: InStock

Mã kho: PAC187

Mã nhà sản xuất: LCA400-58F-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, standard barrel with window lug, 400 kcmil cable, 90° angle tongue, 5/8 stud hole.

Copper Conductor Size (kcmil)	400
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard
Tongue Width (In.)	1.39
Tongue Width (mm)	35.3
Tongue Angle	90°
Tongue Thickness (In.)	0.18
Tongue Thickness (mm)	4.6
Overall Length (In.)	2.58
Overall Length (mm)	65.5
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
