Panduit lugs [LCA500-12-6], PAC195

Name: Panduit lugs [LCA500-12-6], PAC195
Brand: Panduit
SKU: PAC195
Price: 436000.0 VND
Availability: InStock

Mã kho: PAC195

Mã nhà sản xuất: LCA500-12-6

Tên nhà sản xuất: Panduit

436.000₫ - 436.000₫

436.000₫

436.000₫ - 436.000₫

436.000₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA500-12-6

MÔ TẢ SẢN PHẨM

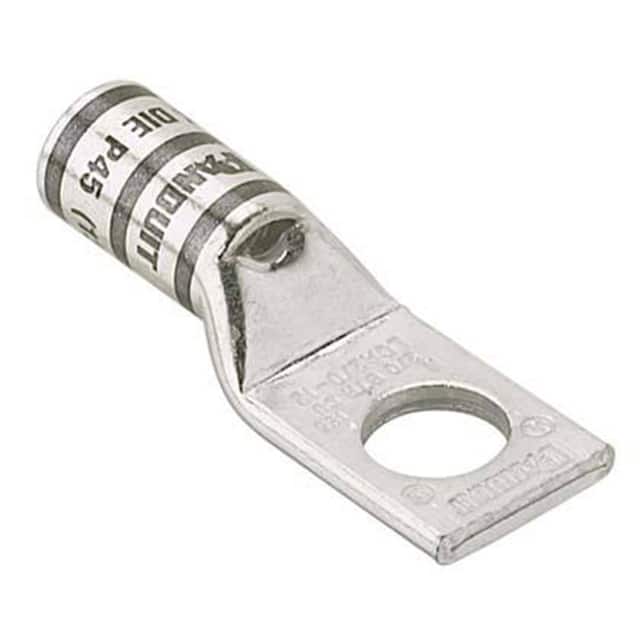

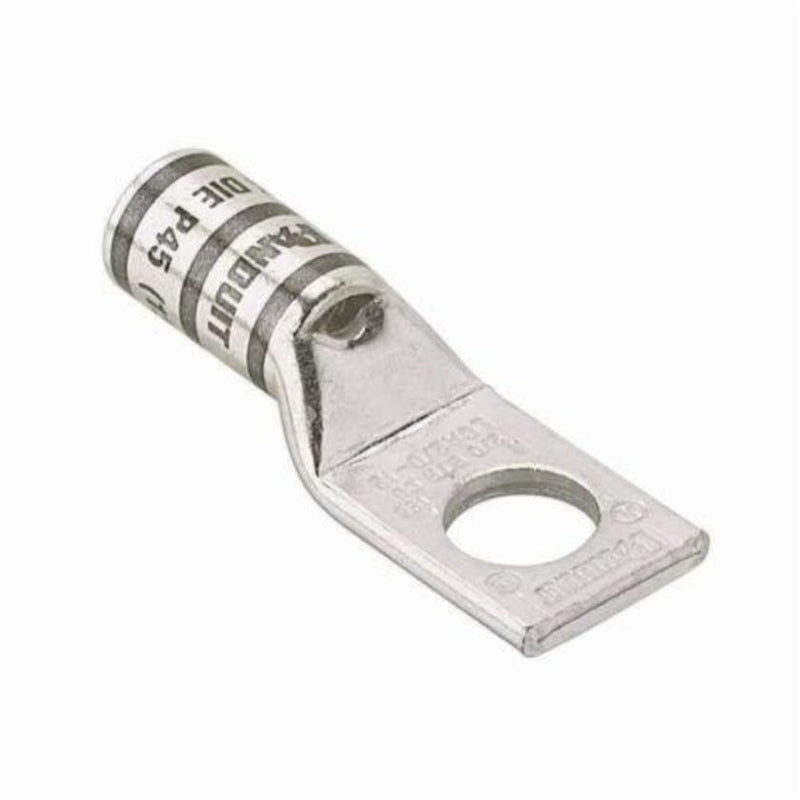

The LCA500-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.84
Inside Diameter (mm)	21.33
Outer Diameter (In.)	1.06
Outer Diameter (mm)	26.92
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	1 Stud Hole Lug
Base Material	Copper
Copper Code Conductor Size (kcmil)	500
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	1.75
Barrel Length (mm)	44.5
Tongue Type	Standard
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	3.55
Overall Length (mm)	90.2
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
T & B Die Index Number	20
Wire Strip Length (In.)	1-13/16
Wire Strip Length (mm)	46
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
