Panduit lugs [LCA500-12H-6], PAC196

Name: Panduit lugs [LCA500-12H-6], PAC196
Brand: Panduit
SKU: PAC196
Price: 1249600.0 VND
Availability: InStock

Mã kho: PAC196

Mã nhà sản xuất: LCA500-12H-6

Tên nhà sản xuất: Panduit

1.249.600₫ - 1.249.600₫

1.249.600₫

1.249.600₫ - 1.249.600₫

1.249.600₫

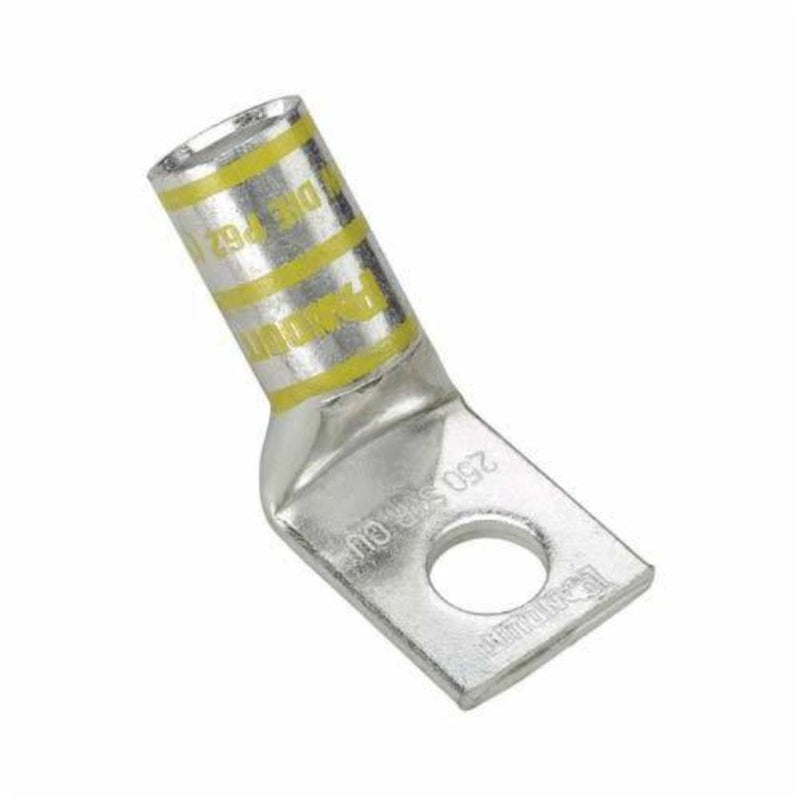

One-hole, standard barrel with window lug, 500 kcmil cable, 45° angle tongue, 1/2 stud hole.

Copper Conductor Size (kcmil)	500
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.75
Barrel Length (mm)	44.5
Tongue Type	Standard
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	45°
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	3.1
Overall Length (mm)	78.7
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
Wire Strip Length (In.)	1.81
Wire Strip Length (mm)	46
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
