Panduit lugs [LCA500-34-6], PAD076

Name: Panduit lugs [LCA500-34-6], PAD076
Brand: Panduit
SKU: PAD076
Price: 857490.0 VND
Availability: InStock

Mã kho: PAD076

Mã nhà sản xuất: LCA500-34-6

Tên nhà sản xuất: Panduit

857.490₫ - 857.490₫

857.490₫

857.490₫ - 857.490₫

857.490₫

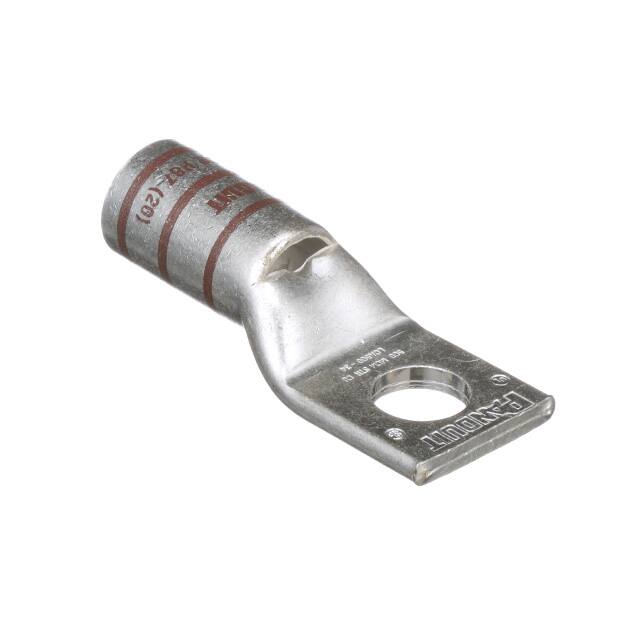

One-hole, standard barrel with window lug, 500 kcmil cable, 3/4 stud hole.

Copper Conductor Size (kcmil)	500
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.828
Stud Hole Size (mm)	19.1
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.75
Barrel Length (mm)	44.5
Tongue Type	Standard
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	3.9
Overall Length (mm)	99.1
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
Wire Strip Length (In.)	1.81
Wire Strip Length (mm)	46
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
