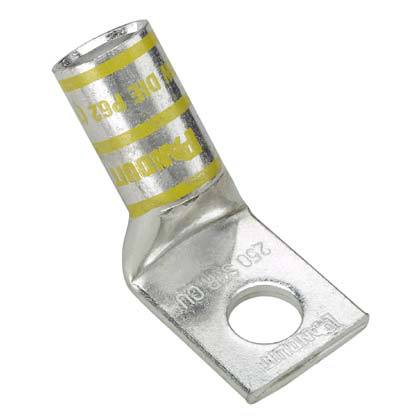

Panduit lugs [LCA6-14H-L], PAD086

Name: Panduit lugs [LCA6-14H-L], PAD086
Brand: Panduit
SKU: PAD086
Price: 74250.0 VND
Availability: InStock

Mã kho: PAD086

Mã nhà sản xuất: LCA6-14H-L

Tên nhà sản xuất: Panduit

74.250₫ - 74.250₫

74.250₫

74.250₫ - 74.250₫

74.250₫

One-hole, standard barrel with window lug, #6 AWG wire, 45° angle tongue, 1/4 stud hole.

Copper Conductor Size (AWG)	#6
Copper Conductor Size (kcmil)	26.24
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.81
Barrel Length (mm)	20.6
Tongue Type	Standard
Tongue Width (In.)	0.48
Tongue Width (mm)	12.2
Tongue Angle	45°
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	1.38
Overall Length (mm)	35.1
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Blue
Panduit Die Index Number	P24
Burndy Die Index Number	7
Wire Strip Length (In.)	42,954
Wire Strip Length (mm)	22.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
