Panduit lugs [LCA600-12F-6], PAD091

Name: Panduit lugs [LCA600-12F-6], PAD091
Brand: Panduit
SKU: PAD091
Price: 1251300.0 VND
Availability: InStock

Mã kho: PAD091

Mã nhà sản xuất: LCA600-12F-6

Tên nhà sản xuất: Panduit

1.251.300₫ - 1.251.300₫

1.251.300₫

1.251.300₫ - 1.251.300₫

1.251.300₫

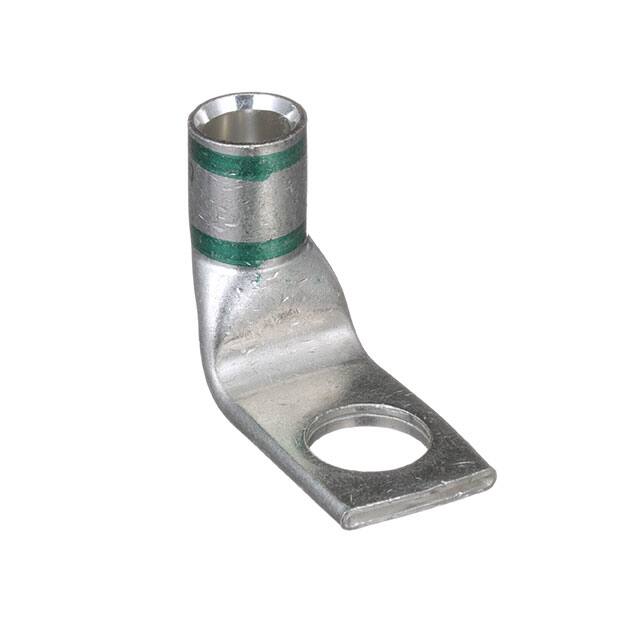

One-hole, standard barrel with window lug, 600 kcmil cable, 90° angle tongue, 1/2 stud hole.

Copper Conductor Size (kcmil)	600
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.75
Barrel Length (mm)	44.5
Tongue Type	Standard
Tongue Width (In.)	1.7
Tongue Width (mm)	43.2
Tongue Angle	90°
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	3.21
Overall Length (mm)	81.5
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Green
Panduit Die Index Number	P94
Burndy Die Index Number	22
Wire Strip Length (In.)	1.81
Wire Strip Length (mm)	46
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
