Panduit lugs [LCA750-38-6], PAE720

Mã kho: PAE720
Mã nhà sản xuất: LCA750-38-6
Tên nhà sản xuất: Panduit
Original price 1.476.150₫ - Original price 1.476.150₫
Original price
1.476.150₫
1.476.150₫ - 1.476.150₫
Current price 1.476.150₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA750-38-6

MÔ TẢ SẢN PHẨM

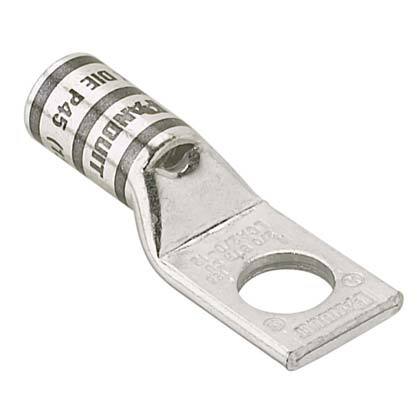

Copper Compression Lug, 1 Hole, 750 kcmil Code Conductor, Standard Barrel, 3/8" Stud

_THÔNG SỐ KỸ THUẬT:

Lug Type 1 Stud Hole Lug
Sub Brand PAN LUG
Stud Hole Size (mm) 9.525
Barrel Type Standard Barrel with Inspection Window
Barrel Length (In.) 1.88
Barrel Length (mm) 47.752
Tongue Type Standard
Tongue Width (In.) 1.89
Tongue Width (mm) 48.006
Tongue Angle Straight
Tongue Thickness (In.) 0.26
Tongue Thickness (mm) 6.604
Overall Length (In.) 3.85
Overall Length (mm) 97.79
Finish/Coating Tin-Plated
Standards Met UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia
Maximum Voltage (kV) 35
Color Code Black
Panduit Die Index Number P106
Burndy Die Index Number 24
T & B Die Index Number 106
Wire Strip Length (mm) 49.2252
