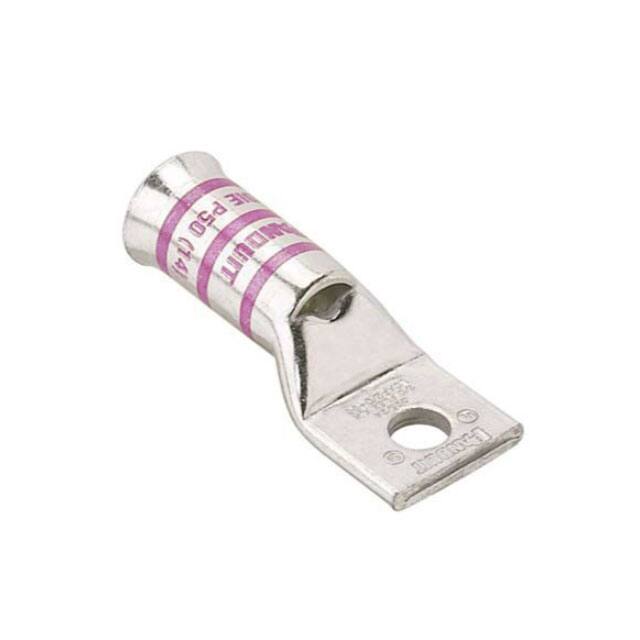

Panduit lugs [LCAF1-12-X], PAD104

Name: Panduit lugs [LCAF1-12-X], PAD104
Brand: Panduit
SKU: PAD104
Price: 154550.0 VND
Availability: InStock

Mã kho: PAD104

Mã nhà sản xuất: LCAF1-12-X

Tên nhà sản xuất: Panduit

154.550₫ - 154.550₫

154.550₫

154.550₫ - 154.550₫

154.550₫

One-hole, flared barrel, #1 AWG wire, 1/2 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.94
Barrel Length (mm)	23.9
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.8
Tongue Width (mm)	20.3
Tongue Angle	Straight
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	2.31
Overall Length (mm)	58.7
Color Code	Pink
Panduit Die Index Number	P42
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25.4
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
