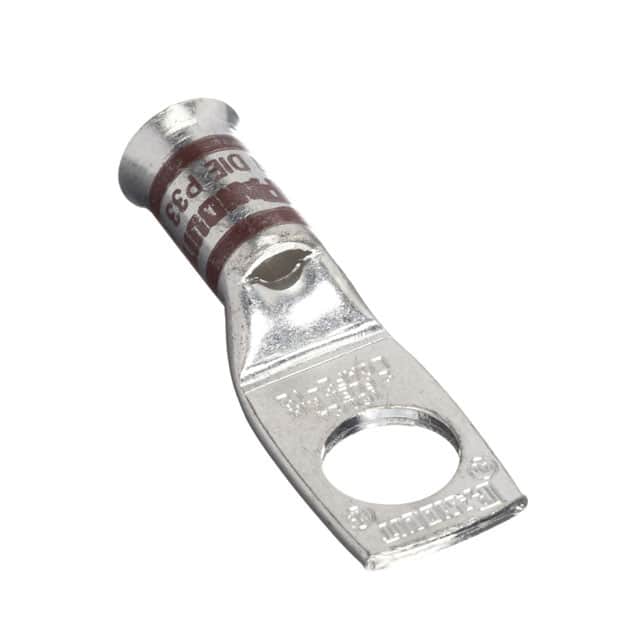

Panduit lugs [LCAF2-12-E], PAD124
Panduit lugs [LCAF2-12-E], PAD124

Panduit lugs [LCAF2-12-E], PAD124

Mã kho: PAD124
Mã nhà sản xuất: LCAF2-12-E
Tên nhà sản xuất: Panduit
151.910₫ - 151.910₫
151.910₫
151.910₫ - 151.910₫
151.910₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAF2-12-E

MÔ TẢ SẢN PHẨM

One-hole, flared barrel, #2 AWG wire, 1/2 stud hole.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.767
Stud Hole Size (mm) 12.7
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.88
Barrel Length (mm) 22.4
Tongue Type Standard Tongue Width
Tongue Width (In.) 0.79
Tongue Width (mm) 20.1
Tongue Angle Straight
Tongue Thickness (In.) 0.09
Tongue Thickness (mm) 2.3
Overall Length (In.) 2.23
Overall Length (mm) 56.6
Color Code Brown
Panduit Die Index Number P33
Wire Strip Length (mm) 23.8
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
