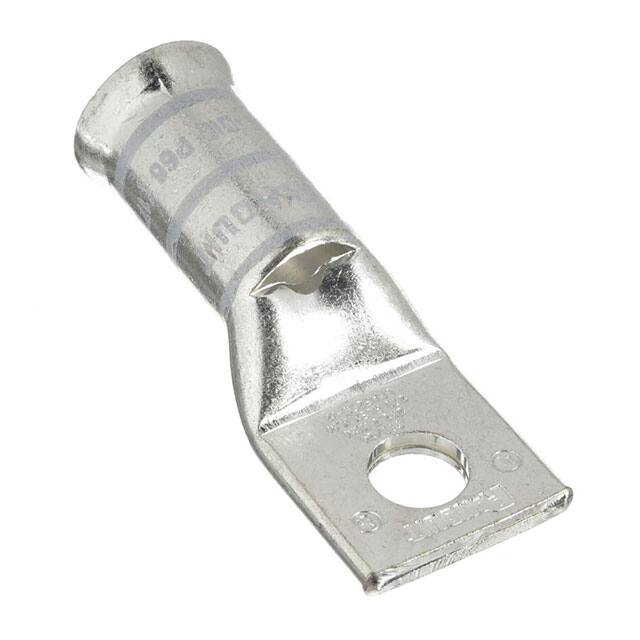

Panduit lugs [LCAF250-12-X], PAC222

Name: Panduit lugs [LCAF250-12-X], PAC222
Brand: Panduit
SKU: PAC222
Price: 335150.0 VND
Availability: InStock

Mã kho: PAC222

Mã nhà sản xuất: LCAF250-12-X

Tên nhà sản xuất: Panduit

335.150₫ - 335.150₫

335.150₫

335.150₫ - 335.150₫

335.150₫

One-hole, flared barrel, 250 kcmil cable, 1/2 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.65
Barrel Length (mm)	42
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	3.3
Overall Length (mm)	83.8
Color Code	White
Panduit Die Index Number	P66
Wire Strip Length (In.)	1.75
Wire Strip Length (mm)	44.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
