Panduit lugs [LCAF3/0-12-X], PAC224

Name: Panduit lugs [LCAF3/0-12-X], PAC224
Brand: Panduit
SKU: PAC224
Price: 233150.0 VND
Availability: InStock

Mã kho: PAC224

Mã nhà sản xuất: LCAF3/0-12-X

Tên nhà sản xuất: Panduit

233.150₫ - 233.150₫

233.150₫

233.150₫ - 233.150₫

233.150₫

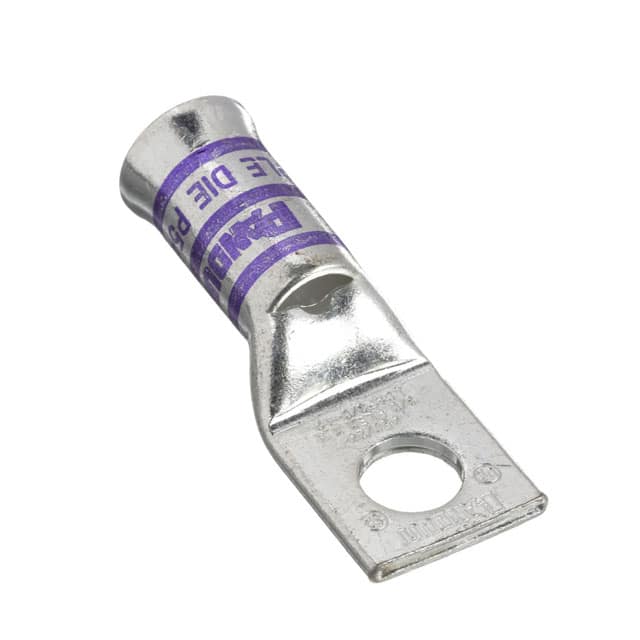

One-hole, flared barrel, 3/0 AWG wire, 1/2 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.35
Barrel Length (mm)	34.3
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Tongue Angle	Straight
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	2.83
Overall Length (mm)	71.9
Color Code	Purple
Panduit Die Index Number	P54
Wire Strip Length (In.)	14,375
Wire Strip Length (mm)	36.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
