Panduit lugs [LCAF3/0-38F-X], PAD159

Name: Panduit lugs [LCAF3/0-38F-X], PAD159
Brand: Panduit
SKU: PAD159
Availability: InStock

Mã kho: PAD159

Mã nhà sản xuất: LCAF3/0-38F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

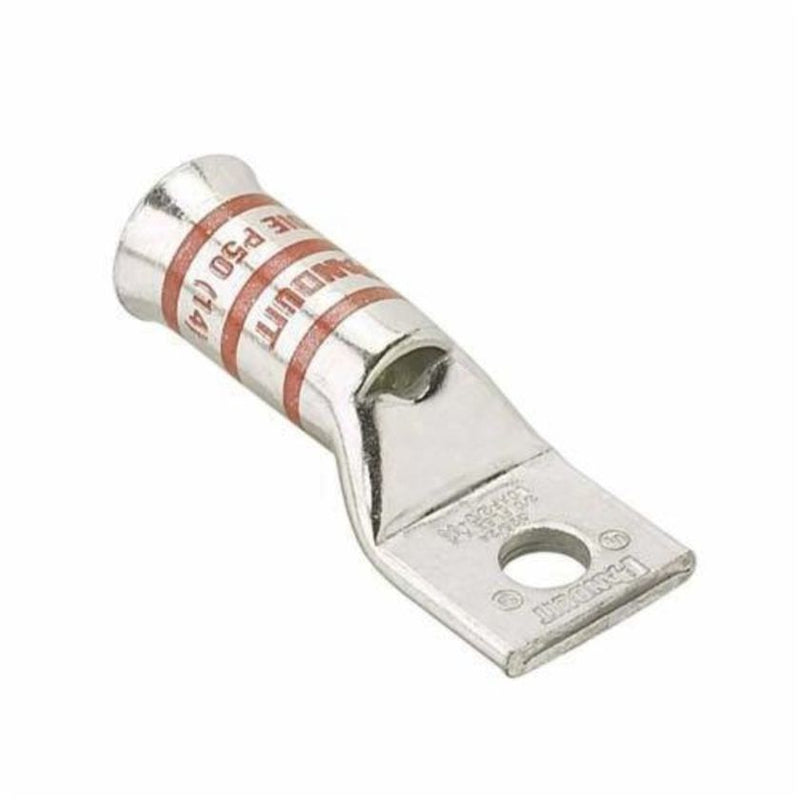

One-hole, flared barrel, 3/0 AWG wire, 3/8 stud hole, 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Size (mm)	9.5
Tongue Type	Standard Tongue Width
Tongue Angle	90°
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Overall Length (In.)	1.89
Overall Length (mm)	48
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.35
Barrel Length (mm)	34.3
Sub Brand	Pan-Lug
Wire Strip Length (In.)	14375
Wire Strip Length (mm)	36.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
