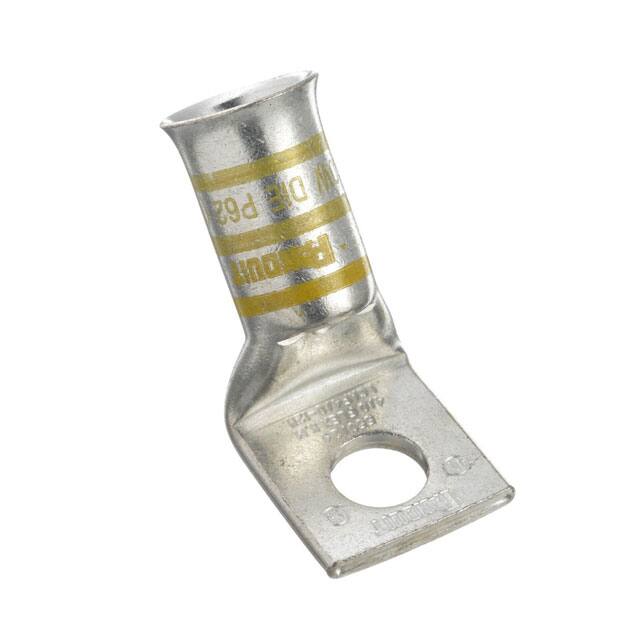

Panduit lugs [LCAF4/0-12H-X], PAD199

Name: Panduit lugs [LCAF4/0-12H-X], PAD199
Brand: Panduit
SKU: PAD199
Price: 392450.0 VND
Availability: InStock

Mã kho: PAD199

Mã nhà sản xuất: LCAF4/0-12H-X

Tên nhà sản xuất: Panduit

392.450₫ - 392.450₫

392.450₫

392.450₫ - 392.450₫

392.450₫

One-hole, flared barrel, 4/0 AWG wire, 1/2 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Tongue Type	Standard Tongue Width
Tongue Angle	45°
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Tongue Width (In.)	1.17
Tongue Width (mm)	29.7
Overall Length (In.)	2.47
Overall Length (mm)	62.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.35
Barrel Length (mm)	34.3
Sub Brand	Pan-Lug
Wire Strip Length (In.)	14375
Wire Strip Length (mm)	36.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
