Panduit lugs [LCAF500-58-6], PAD216

Name: Panduit lugs [LCAF500-58-6], PAD216
Brand: Panduit
SKU: PAD216
Price: 948630.0 VND
Availability: InStock

Mã kho: PAD216

Mã nhà sản xuất: LCAF500-58-6

Tên nhà sản xuất: Panduit

948.630₫ - 948.630₫

948.630₫

948.630₫ - 948.630₫

948.630₫

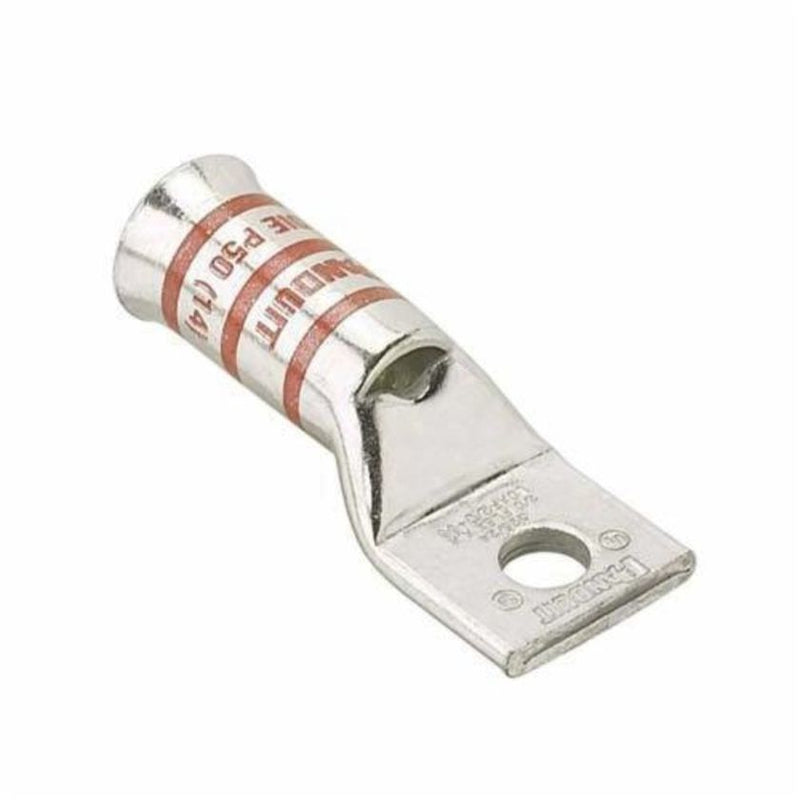

One-hole, flared barrel, 500 kcmil cable, 5/8 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	2.28
Barrel Length (mm)	58
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.89
Tongue Width (mm)	48
Tongue Angle	Straight
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	5.18
Overall Length (mm)	131.6
Color Code	Pink
Panduit Die Index Number	P99
Wire Strip Length (In.)	23,125
Wire Strip Length (mm)	58.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
